-# Mobile Robot Bootcamp (Jan 26)
-
-For the first lab, we will just focus on getting everyone set up with [ROS 2](https://docs.ros.org/en/humble/index.html) and ready to program and build robots.
-
-In lab on Thursday, we will walk you through the basic concepts for ROS and play with some basic functionalities of it.
-
-## Preparation Activities
-
-### Set up your Course Github Repo
-
-Fork the [Mobile HRI Lab Page repository](https://github.com/FAR-Lab/Mobile_HRI_Lab_Hub); detailed instructions for creating your lab hub and updating your labs are [here](https://github.com/FAR-Lab/Developing-and-Designing-Interactive-Devices/blob/2022Fall/readings/Submitting%20Labs.md).
-
-When submitting your assignments, you will update your assignments on your class lab hub, and post a link to your Github lab page on Canvas. Graders will review the assignments sometime after the due date. Late assignments (e.g. your assignment is missing/incomplete at our grading time, which is after the due date) will be penalized by one letter grade per day late.
-

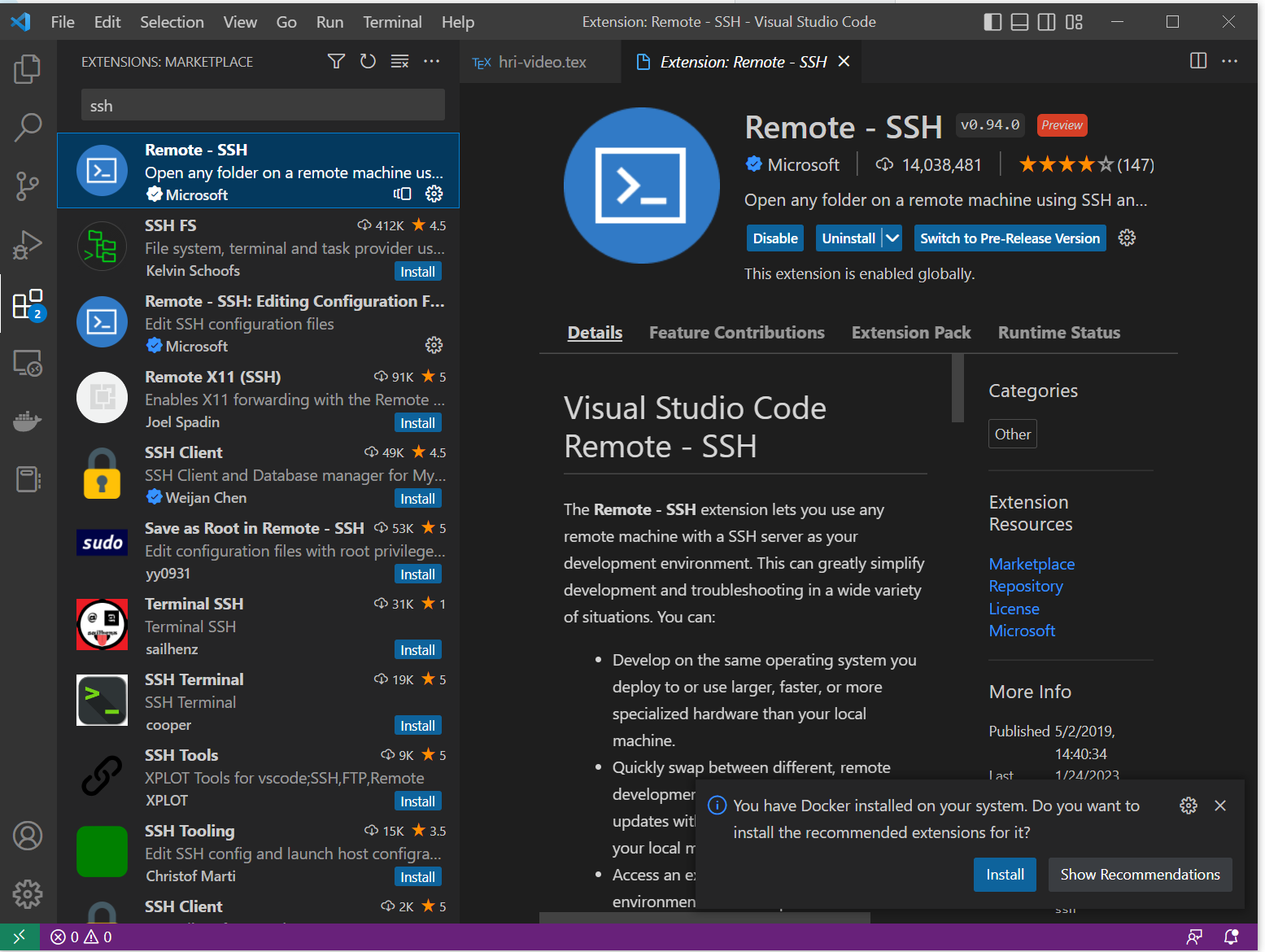

-### Install VSCode
-Install VSCode [here](https://code.visualstudio.com/).
-
-Then, install Remote-SSH extension within VSCode.
-
-
-
-### Install Foxglove studio.
-Foxglove studio is a visualization tool for ROS 2. It is relatively new but very powerful. Please download it on you laptop [here](https://foxglove.dev/studio).
-* For windows users, if you get a Windows Security Alert upon opening the app regarding network permissions, make sure you select **both private (not selected by default) and public network**.
-
-### Install VNC Viewer
-Download VNC Viewer from [here](https://www.realvnc.com/en/connect/download/viewer/).
-
-
-### Install ROS2 Humble on your machine. (Only recommended for Linux and Windows Users.)
-In the past, ROS has been very exclusive. Your kind of have to use a linux based system to use it. As an upgrade, ROS 2 now supports more [platforms](https://www.ros.org/reps/rep-2000.html#rolling-ridley-june-2020-ongoing), but the community still prefers linux over other platforms. Try your best to install
-ROS on your laptop, but this is definitely *not* a requirement to complete the course. Even if you have trouble installing it, please still bring your laptop to
-the lab on Thursday.
-
-#### Linux
-If you have a linux system, great! Please follow the instructions [here](https://docs.ros.org/en/humble/Installation/Ubuntu-Install-Debians.html) to install ROS 2 Humble. If possible, you should do desktop install ```ros-humble-desktop```. Development tools are not required.
-
-#### SBC (if you happen to have a spare raspberry pi 3/4), bring those!
-Install Ubuntu 22.04 system [Here](https://ubuntu.com/download/raspberry-pi). Then follow the instructions [here](https://docs.ros.org/en/humble/Installation/Ubuntu-Install-Debians.html).
-
-#### Windows
-Method 1 (recommended): Windows setup is a bit harder than Linux machines. Please follow the instructions [here](https://docs.ros.org/en/humble/Installation/Windows-Install-Binary.html) to install ROS 2 Humble.
-
-Method 2: As an alternative, you can leverage the power of [Windows Subsystem for Linux (WSL)](https://learn.microsoft.com/en-us/windows/wsl/install) and install ubuntu 22.04 inside your windows machine. (For older version of Windows 10, follow instructions [here](https://pureinfotech.com/install-windows-subsystem-linux-2-windows-10/#:~:text=To%20install%20WSL2%20on%20Windows,%E2%80%9Cwsl%20%E2%80%93update%E2%80%9D%20command.).) Then, follow the linux installation instructions [here](https://docs.ros.org/en/humble/Installation/Ubuntu-Install-Debians.html) to install ROS inside your WSL.
-* This is not recommended because you may run into firewall issures. Also, you cannot connect to remote robots through your laptop later. However, this is a great way to do robot simulations.
-
-#### Mac (you can try it, not guranteed to work)
-Method 1: macOS is no longer a target platform for future ROS realeases, this means you need to compile it from source.
-If you have macOS Mojave (10.14) and some free time, give [this](https://docs.ros.org/en/humble/Installation/Alternatives/macOS-Development-Setup.html) a try.
-Otherwise, we will provide raspberry pi as alternatives during the lab.
-
-Medthod 2: If you are familiar with [docker](https://docs.docker.com/desktop/install/mac-install/), [here](https://hub.docker.com/r/osrf/ros2/) is a docker image for you. This is not recommended because you are not able to
-connect to your remote robots from docker. This is only good for compiling and testing code.
-
-### SSH (Particularly important if you don't have ROS on your own system)
-If you have trouble installing ROS, please make sure your ssh is running properly before coming to the lab on Thursday.
-For Windows, please follow the guide [here](https://learn.microsoft.com/en-us/windows-server/administration/openssh/openssh_install_firstuse?tabs=gui).
-Mac and Linux machines should have ssh by default.
-
-## ROS BOOTCAMP (In-lab activity, 1/26/2023)
-
-Robot Operating System (ROS) has been the standard open source tool for the robotics community since 2007. Before ROS, research labs tended to each have their own code base and infrastructure, which made sharing and collaboration very difficult to manage. ROS provides a unified space for the robotics community to contribute and share.
-
-
-Picture credit: http://geldonsgaming.blogspot.com/2012/08/regarding-reinventing-wheel.html
-
-There are many distributions of ROS (for different operating systems, like Linux, Windows, and MacOS and new updates, like ROS 1 or ROS 2). Since ROS is initially (and still) mostly based on Linux systems, the release of ROS versions closely matches the release of Ubuntu operating systems. If you have worked with ROS before, you may probably know that there are 2 main versions of ROS: ROS 1 and ROS 2. In this class, we will use ROS 2 (called distribution Humble), which is the latest distribution of ROS 2. The documentation contains a lot of helpful information and tutorials, please take a moment and skim through the available resources listed on this [website](https://docs.ros.org/en/humble/index.html).
-
-### In-lab setup
-Since most students are using Mac, which does not support ROS natively, we decide to switch to a web-based development environment just for this lab to get you started on ROS 2 without dealing with the setup process (Thanks, Frank! -natalie).
-
-You will need:
-1. Go the [the Construct website](https://www.theconstructsim.com/) and create a free account.
-2. On your home page, look to the panel on the left, click "My Rosjects"
-3. Click "Create a New Rosject", in the ROS Distro drop down, select `ROS2 Humble`.
-4. Name the project "lab0" and create the project.
-
-
-The lab today is based on the tutorials on the official [ROS 2 website](https://docs.ros.org/en/humble/index.html). ROS tutorials are generally good, and the community is very friendly. However, when I first started learning ROS, I found the tutorials a bit hard to understand. Therefore, I added some of my own sauce to the tutorial and hopefully this will help you understand it a bit better. Please ask freely if you run into any questions, you should never be alone facing ROS problems.
-
-### Source the environment
-Source the environment. You will hear me say this a lot. This is very important. Without sourcing your environment, your system doesn't know what ROS is.
-
-So, what do I mean by "source the environment"? Officially, it means adding environment variables to the system path that are crucial for the system to identify and execute ROS functions (Got my answer from this [forum](https://answers.ros.org/question/188309/what-does-source-command-actually-do/)). It simply means tell your system what ROS is and where it is. So, if your computer is asking you what ROS is, you probably forgot to source it.
-
-#### Task 1:
-
-To source ROS, open a terminal, aka, "Webshell" (on the bottom left corner) in your opened lab0 Rosject (click the terminal button in the bottom left corner), type in the following command:
-
-```source /opt/ros/humble/setup.bash```
-
-or if you are lazy, this works too:
-
-```. /opt/ros/humble/setup.bash```
-
-* By default, ROS will be installed in `/opt/ros/[Distro]/`.
-
-Whenever you open a new terminal that you want to run ROS in, you have to source it. I know that would be annoying. I have a solution: To make your life easier, you can add this command to `. ~/.bashrc`. It is a hidden file that will be executed automatically every time you open a new terminal. You're welcome. :)
-
-#### Task 1.5:
-
-Open the code editor (the button right of terminal that looks like this: < >) in your lab0 Rosject, click "File" -> "Open...", and find the file named ".bashrc" (it will have a purple icon). Open it, and add ```source /opt/ros/humble/setup.bash``` to the end. Save it.
-
-### Part A. ROS Workspace.
-According to the [documentation](https://docs.ros.org/en/humble/Tutorials/Beginner-Client-Libraries/Creating-A-Workspace/Creating-A-Workspace.html), "a workspace is a directory containing ROS 2 packages."
-
-So, it is a folder that will contain your code. That's all. However, there is one caveat here. This folder must follow a certain structure for ROS to work properly.
-
-#### Task 2 (create a ROS workspace):
-Go back to your terminal again, type the following command:
-
-```mkdir -p ~/mobilehri_ws/src```
-
-What does this mean?
-
-Well, thought you would never ask.
-
-[mkdir](https://linux.die.net/man/1/mkdir) is a linux command, which will create a directory(folder) in your current path. If I am in the folder `\home\frank\`, `mkdir robot` will create the folder `\home\frank\robot`. `-p` means creating parent directories if necessary. By default, you cannot create nested directories directly with `mkdir`. So, if you want to make a new folder that contains another folder, you need the `-p` flag.
-
-This line of code is equivalent to the following lines of code.
-```
-cd ~ # comment: move to home(~) directory
-mkdir mobilehri_ws
-cd mobilehri_ws
-mkdir src
-```
-
-
-By convention, all the ROS code you right must live in the `src` directory.
-* Take away here is that a ROS workspace is a directory/folder that contains another folder called `src`. All your code must live in `src`.
-
-
-### Part B. ROS Package
-If you are familiar with Python, you must be familiar with packages like `numpy` and `matplotlib`. A package is just a way to efficiently group your code together. ROS is also organized by packages. You can create a package for your own robot to move around, to see, and to respond to the environment. Within a workspace, you can have as many packages as you want. Therefore, the convention in the ROS community is that you group similar functions in the same package, and name the package accordingly. Don't be afraid to create more packages, they can keep your code readable and clean.
-
-Now, let's create a ROS package! yay.
-
-#### Task 3:
-
-Go to a terminal (aka, "webshell"):
-
-``` bash
-# Remember what we said about workspace, your code and packages must live in the /src folder
-cd ~/mobilehri_ws/src
-
-ros2 pkg create --build-type ament_python my_package --dependencies std_msgs rclpy
-
-# You will see that a bunch of files are generated for you automatically.
-```
-
-
-What did I just do?
-
-By sourcing, your system now understands what `ros2` means. ROS comes with a list of prebuild functions for your convenience. Type `ros2 -h` in your terminal to see all of them.
-
-`ros2 pkg create` basically tells ROS that you are creating a package.
-
-`--build-type` indicates what language you will use predominantly for the package. If you mostly use C and C++, you should set this to `ament_cmake`. If your code only contains python, set it to `ament_python`. (read more [here](https://answers.ros.org/question/342118/ament_cmake-vs-ament_python/)). Yes, you mix python and C++ within a package, but in general it's not necessary.
-
-`my_package` is just the package name, it's whatever you want. It is always a good practice to forbid the space character in package names.
-
-`--dependencies`: you will need this if you know what other packages your package will use. For example, `std_msgs` is a library for standard messages (such as strings), so it is always a good idea to include it. `rclpy` is short for ROS Client Library for Python. You always need it if you are writing ROS code in Python.
-* After creating your package, what if you realize that you need to add other dependencies? Check the file tree below, you are able to add more dependencies in package.xml. Open it and see what's inside.
-
-
-Now, look inside your `/src` folder. It should contain another folder called `my_package`.
-
-Your current workspakce should look like this. Notice the nested folder with the same name `my_package`.
-```
-mobilehri_ws/
- src/
- my_package/
- my_package/ # Where your actual python code will live
- package.xml # Package info, can add more dependencies
- resource/ # autogenerated by python
- setup.cfg # autogenerated to create executables
- setup.py # can add entry_points (terminal shortcuts)
- test/
-```
-
-
-### Part 3. Node, Topics, Messages
-
-Before we go any further, let's talk about some of the core concept of ROS.
-In a nutshell, ROS is simply a middleware that allows you to communicate with robots, and let robots communicate with other robots.
-Therefore, the core functionality of ROS is simply communicating.
-
-If you are familiar with the concept of graphs, ROS 2 system can be thought of as a graph of nodes and edges, where nodes represent processes and edges represent communication.
-
-Within the ROS graph, the most common concepts are the following:
-```
-(ROS Wiki Version)
-Nodes: A node is an entity that uses ROS to communicate with other nodes.
-
-Messages: ROS data type used when subscribing or publishing to a topic.
-
-Topics: Nodes can publish messages to a topic as well as subscribe to a topic to receive messages.
-```
-
-```
-(Frank's version) I will try to make some analogies here, but please ask if this isn't clear.
-
-ROS is a graph that contains nodes and edges, so we can think of it as a network of nodes.
-I am going to make the analogy between ROS network and a network of people (social networks?).
-
-Nodes: In our people network analogy, a node is kind of like a person.
-They can either listen or speak, or doing both at the same time! A node will execute whatever task (open a camera, do some math, stream audio)
-you assign it and share the result with others.
-
-Messages: The data content that is being passed around by nodes.
-In our analogy, they are content that one says to another.
-
-Topics: In our people network example, this can be thought of as the topic of the conversation.
-If a person (node) is interested in a topic, they can always join (subscribe) at any time or stop listening at any time if it's boring.
-If they have something to say about a certain topic, they can speak (publish) freely.
-ROS nodes can publish to many topics and listent to many at the same time.
-```
-

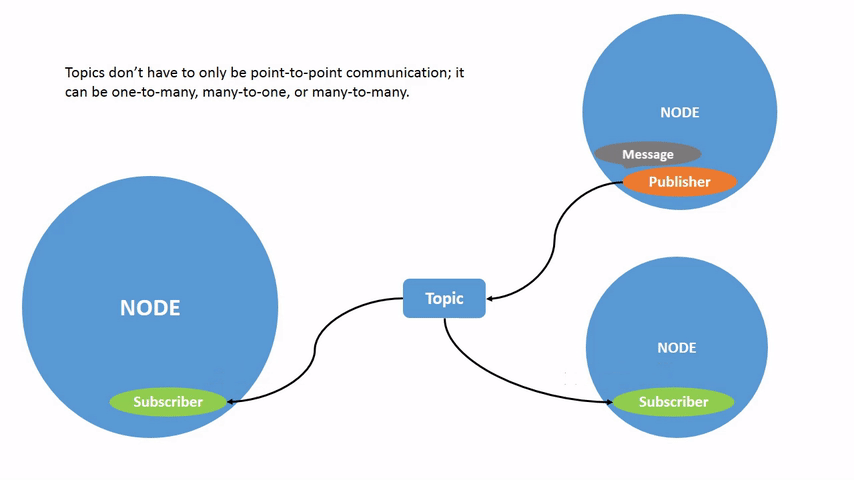

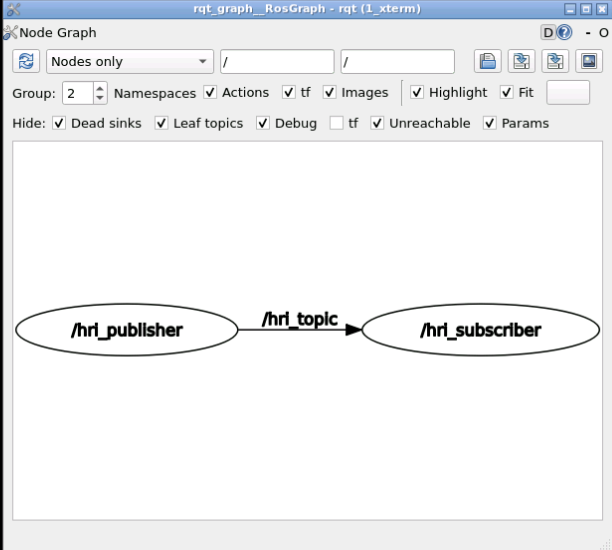

-This graph captures the essense of the ROS concept.
-
-
-Picture source: https://docs.ros.org/en/humble/Tutorials/Beginner-CLI-Tools/Understanding-ROS2-Topics/Understanding-ROS2-Topics.html
-
-#### Task 4 Make a node that talks!
-To speak, a node needs a special type of function called a `publisher`.
-
-In your workspace, create a file and name it `hri_publisher.py` in the following folder (mobilehri_ws/src/my_package/my_package/).
-``` bash
-# In a terminal
-cd ~/mobilehri_ws/src/my_package/my_package/
-touch hri_publisher.py # This creates an empty file called hri_publisher.
-```
- You can create files using the code editor, which is similar to the VSCode interface. Your file structure should look like this now.
-``` bash
-mobilehri_ws/
- src/
- my_package/
- my_package/ # Where your actual python code will live
- __init__.py
- hri_publisher.py # NEW!
- package.xml # Package info, can add more dependencies
- resource/ # autogenerated by python
- setup.cfg # autogenerated to create executables
- setup.py # can add entry_points (terminal shortcuts)
- test/
-```
-
-#### Task 4.1
-
-Let's make a talking node first!
-Open the file hri_publisher.py. Let's write this line by line.
-
-First type in the following lines to import required packages:
-``` python
-import rclpy
-from rclpy.node import Node
-from std_msgs.msg import String
-```
-Recall that when we create the pacakge in **Task 3**, we add dependencies to `rclpy` and `std_msgs`. We are using them now! `rclpy ` contains basic functionalities of ROS, and we specifically need the `Node` class from `rclpy`, which provides basic functions of nodes in ROS.
- `std_msgs` is a package that contains many different types of messages. Click [here](http://wiki.ros.org/std_msgs) to see a list of included message types.
-
-Now, copy the following class to the hri_publisher.py.
-``` Python
-class HRIPublisher(Node):
-
- def __init__(self):
- super().__init__('hri_publisher')
- self.publisher_ = self.create_publisher(String, 'hri_topic', 10)
- timer_period = 1 # seconds
- self.timer = self.create_timer(timer_period, self.timer_callback)
- self.i = 0
-
- def timer_callback(self):
- msg = String()
- msg.data = 'Hey robot, how are you doing? (%d)' % self.i
- self.publisher_.publish(msg)
- self.get_logger().info('Chatting with the robot: "%s"' % msg.data)
- self.i += 1
-```
-Let's decode this line by line.
-``` Python
-# First, Let's create a node called `HRIPublisher`
-class HRIPublisher(Node):
-```
-ROS 2 has a general template for how Node should operate. To create your own customized node, you need to make your class **inherit** the general Node class you just imported. If you are unfamiliar with the concept of inheritance, do a quick search [online](https://www.w3schools.com/python/python_inheritance.asp#:~:text=Inheritance%20allows%20us%20to%20define,class%2C%20also%20called%20derived%20class.)!
-
-``` Python
- # This function will be called whenever our Node is being created.
- def __init__(self):
- super().__init__('hri_publisher')
-```
-super() means this child class inherit all the methods and properties from its parent.Here, we ask our own HRIPublisher node to have all the basic functionalities of the `rclpy.Node` class, and give it a name called `hri_publisher`.
-``` Python
- self.publisher_ = self.create_publisher(String, 'hri_topic', 10)
-```
-Most important line of code! we are creating a publisher function using [self.create_publisher()](https://docs.ros2.org/latest/api/rclpy/api/node.html#rclpy.node.Node.create_publisher) function.
-It is saying that our `HRIPublisher` node is going to publish messages of the type `String`, under the topic name `hri_topic`. The number 10 is specifing something called a qos_profile (quality of service), which specifies the rules on how messages should be handled. Read more about it [here](https://docs.ros.org/en/humble/Concepts/About-Quality-of-Service-Settings.html). We will talk more about this later.
-``` Python
- timer_period = 1.0 # seconds
- self.timer = self.create_timer(timer_period, self.timer_callback)
-```
-ROS 2 node also provides you with a [timer](https://docs.ros2.org/latest/api/rclpy/api/node.html#rclpy.node.Node.create_publisher). What this means is that after every `time_period` (1 second here), the node will automatically call the function `self.timer_callback`. Let's look inside `timer_callback()`.
-
-``` Python
- def timer_callback(self):
- msg = String()
-```
-Create a message with the type String.
-``` Python
- msg.data = 'Hey robot, how are you doing? (%d)' % self.i
-```
-Fill in the message with some content. Note that your message content must match the message type. How to check? Look at the definition of String() class in ROS [here](http://docs.ros.org/en/api/std_msgs/html/msg/String.html). String message type in ROS contains a field called `data`, that is of type `string`. What? This is confusing. Let's look at another example.
-
-In the future, you will encouter a message type called Point. Look at its definition [here](http://docs.ros.org/en/api/geometry_msgs/html/msg/Point.html). It is saying that a Point message in ROS contains 3 pieces of information: x, y, z, and they must be floats. So, if you want to publish a Point, you need to define it as following:
-``` python
-pointMsg = Point()
-pointMsg.x = 1.0
-pointMsg.y = 0.0
-pointMsg.z = 0.0
-```
-
-``` Python
- self.publisher_.publish(msg)
-```
-We are using our defined `publisher_` function to publish the msg! Our node will start talking!
-
-``` Python
- self.get_logger().info('Chatting with the robot: "%s"' % msg.data)
-```
-This is ROS's equivalent of `print()` in python, but a bit fancier. It will print extra information such as publishing time of the message.
-``` Python
- self.i += 1
-```
-Well, we all know what this means. Just increment this variable `i` by 1.
-
-**So, this timer callback function is just publishing one message. But because this function is called every 1 second, we are publishing a message every second!**
-
-
-Now, we define a main function to handle a few ROS related things and use our freshly defined hri_publisher class. This is very much a template that you can just
-reuse in the future.
-
-Copy the code below to `hri_publisher.py`, following the class definition of HRIPublisher.
-``` Python
-def main(args=None):
- rclpy.init(args=args)
-
- hri_publisher = HRIPublisher()
-
- rclpy.spin(hri_publisher)
-
- hri_publisher.destroy_node()
- rclpy.shutdown()
-
-
-if __name__ == '__main__':
- main()
-```
-
-
-What your code should look like now.
-
-
-``` Python
-import rclpy
-from rclpy.node import Node
-
-from std_msgs.msg import String
-
-class HRIPublisher(Node):
-
- def __init__(self):
- super().__init__('hri_publisher')
- self.publisher_ = self.create_publisher(String, 'hri_topic', 10)
- timer_period = 1 # seconds
- self.timer = self.create_timer(timer_period, self.timer_callback)
- self.i = 0
-
- def timer_callback(self):
- msg = String()
- msg.data = 'Hey robot, how are you doing? (%d)' % self.i
- self.publisher_.publish(msg)
- self.get_logger().info('Chatting with the robot: "%s"' % msg.data)
- self.i += 1
-
-def main(args=None):
- rclpy.init(args=args)
-
- hri_publisher = HRIPublisher()
-
- rclpy.spin(hri_publisher)
-
- hri_publisher.destroy_node()
- rclpy.shutdown()
-
-
-if __name__ == '__main__':
- main()
-
-```
-
-
-Let's take a close look at this as well.
-``` Python
-def main(args=None):
- rclpy.init(args=args)
-```
-Initialize the `rclpy` library.
-``` Python Python
- hri_publisher = HRIPublisher()
-```
-Use our freshly defined class to create a node
-``` Python
- rclpy.spin(hri_publisher)
-```
-The `spin()` function [spins](https://docs.ros2.org/latest/api/rclpy/api/init_shutdown.html#rclpy.spin) the node. *After a node is created, items of work can be done (e.g. subscription callbacks) by spinning on the node.*
-
-This is mostly relevant to our callback function. Remember we have a timer callback function? This will make sure it will be called properly.
-``` Python
- hri_publisher.destroy_node()
- rclpy.shutdown()
-```
-Handle shutdown gracefully.
-
-``` Python
-if __name__ == '__main__':
- main()
-```
-We just defined a few functions and classes, but none of them are called yet. Here we called the `main()` function we just wrote.
-
-#### Task 4.2
-Give it a try!
-``` Python
-cd ~/mobilehri_ws/src/my_package/my_package/
-python3 hri_publisher.py
-```
-You should see something like the following.
-```
-[INFO] [1674735935.818313147] [hri_publisher]: Chatting with the robot: "Hey robot, how are you doing? (0)"
-[INFO] [1674735936.798105448] [hri_publisher]: Chatting with the robot: "Hey robot, how are you doing? (1)"
-[INFO] [1674735937.798246922] [hri_publisher]: Chatting with the robot: "Hey robot, how are you doing? (2)"
-[INFO] [1674735938.798238691] [hri_publisher]: Chatting with the robot: "Hey robot, how are you doing? (3)"
-[INFO] [1674735939.798006037] [hri_publisher]: Chatting with the robot: "Hey robot, how are you doing? (4)"
-```
-
-Note that this is not what is delivered to the topic. This is just what we printed to the terminal with `get_logger()`.
-
-ROS provides you with a set of command line tools that help you inspect the nodes and topics. Let's try them! **Leave the previous terminal running, and open a new terminal.**
-
-``` bash
-ros2 node list
-```
-See our `/hri_publisher` node here?
-
-``` bash
-ros2 topic list
-```
-This gives you the following.
-``` bash
-/hri_topic # Ours!
-/parameter_events # always there
-/rosout # always there
-```
-
-To see what is being published under `/hri_topic`
-``` bash
-ros2 topic echo /hri_topic
-```
-This will prints out what is actually being published by our node!
-
-* Note that our node is alone in the network now! It is talking but no one is listening. That's right, nodes don't need a listener in order to speak.
-
-To close the program, click the terminal that is running, and press `Ctrl + C`, `control + C` on mac.
-
-#### Task 5 Make a node that listens!
-
-Okay, now we have a talkative node that is constantly greeting a robot, but it is alone in the network. Let's make it a friend that listens to it.
-
-In your workspace, create a file and name it `hri_subscriber.py` in the following folder (mobilehri_ws/src/my_package/my_package/).
-``` bash
-# In a terminal
-cd ~/mobilehri_ws/src/my_package/my_package/
-touch hri_subscriber.py
-```
-Your file structure should look like this now.
-``` bash
-mobilehri_ws/
- src/
- my_package/
- my_package/
- __init__.py
- hri_publisher.py
- hri_subscriber.py # New!
- package.xml
- resource/
- setup.cfg
- setup.py
- test/
-```
-
-Copy paste the following code to `hri_subscriber.py`. Save your file.
-
-``` Python
-import rclpy
-from rclpy.node import Node
-from std_msgs.msg import String
-
-
-class HRISubscriber(Node):
-
- def __init__(self):
- super().__init__('hri_subscriber')
- self.subscription = self.create_subscription(String, 'hri_topic', self.listener_callback, 10)
-
- def listener_callback(self, msg):
- self.get_logger().info('I heard: "%s"' % msg.data)
- self.get_logger().info("I am not doing so well. I failed my Turing test. ")
-
-
-def main(args=None):
- rclpy.init(args=args)
- hri_subscriber = HRISubscriber()
- rclpy.spin(hri_subscriber)
- hri_subscriber.destroy_node()
- rclpy.shutdown()
-
-
-if __name__ == '__main__':
- main()
-```
-As you can see, the structure is the same (Because it is also just a node).
-``` python
- self.subscription = self.create_subscription(String, 'hri_topic', self.listener_callback, 10)
-```
-This time, we are creating a [subscriber](https://docs.ros2.org/latest/api/rclpy/api/node.html#rclpy.node.Node.create_subscription).
-`create_subscription(msg_type, topic, callback, qos_profile)`
-
-The first parameter defines message type. This parameter must match with the message type of the topic, otherwise they are not speaking the same language!
-
-The second parameter is the topic name. This is the topic you want to listen to.
-
-Like the timer we encountered in the publisher section, subscribers also have callback functions (here, it is named `self.listener_callback`). What's different is that the timer callback will be called with predefined frequency, and subscriber callbacks will be called every time it receives a new message from subscribed topic.
-
-Let's try it!
-
-If you shutdown the publisher, restart it.
-``` bash
-# In terminal 1
-cd ~/mobilehri_ws/src/my_package/my_package/
-python3 hri_publisher.py
-```
-
-``` bash
-# In terminal 2
-cd ~/mobilehri_ws/src/my_package/my_package/
-python3 hri_subscriber.py
-```
-
-In terminal 2, you should see that whenever a message is published in terminal 1, the subscriber will respond to it!
-
-ROS also offers a debugging tool for you to visualize your ROS graph.
-``` bash
-# Open another terminal, leave terminal 1 and 2 running.
-rqt_graph
-
-```
-You should be able to see both of your nodes connected through the topic.
-
-
-
-
-## Deliverables
-
-
-1. Link to the folder of a ROS package that contains a publisher and a subscriber
-2. List 5 questions you have about ROS following the tutorial, answers you have found and things you still don't get
-3. Feedback on the bootcamp: What was easy and what was difficult to understand?
diff --git a/Lab0/__init__.py b/Lab0/__init__.py
new file mode 100644
index 0000000..e69de29
diff --git a/Lab0/hri_publisher.py b/Lab0/hri_publisher.py
new file mode 100644
index 0000000..e69de29
diff --git a/Lab0/hri_subscriber.py b/Lab0/hri_subscriber.py
new file mode 100644
index 0000000..e69de29
diff --git a/Lab0/my_package b/Lab0/my_package
new file mode 100644
index 0000000..e69de29
diff --git a/Lab1/Readme.md b/Lab1/Readme.md
index 32caf35..495dedb 100644
--- a/Lab1/Readme.md
+++ b/Lab1/Readme.md
@@ -1,4 +1,9 @@
+# Link to submitted lab
+https://github.com/mteresaparreira/Mobile_HRI_Lab_Hub/tree/main/Lab1
+
# Interaction First
+**Pratul Tandon (pt347), Trevor Morcott (trm75), Maria Teresa Parreira (mb2554)**
+** https://github.com/mteresaparreira/Mobile_HRI_Lab_Hub/tree/main/Lab1 **
\*\***List the names and NetID for your partners here.**\*\*
In this lab, you will modify a robotic creature (ConeBot) that is originally designed by [Dr. Rei Lee](https://infosci.cornell.edu/~reilee/), a friend of our lab. The [ConeBot](https://infosci.cornell.edu/~reilee/ConeBot/) is a shy robot that hides under a small traffic cone. It is adventuring the world by itself but hopes people don't notice it at all.
diff --git a/Lab2/Readme.md b/Lab2/Readme.md
index eae8e48..3da439f 100644
--- a/Lab2/Readme.md
+++ b/Lab2/Readme.md
@@ -1,21 +1,6 @@
# Then Prototype the Robot
-**List the names and NetID for your partners here.**
-
-This week's lab is a continuation of the previous week. We explore the role of both *siting*--the location and activity--in interaction, as well as the *form and appearance* of the robot in the interaction.
-
-
-## Prep
-
-### For this lab, you will need:
-1. Paper
-2. Markers/ Pens
-3. Scissors/Utility Knifes
-4. Smart Phone -- The main required feature is that the phone needs to have a browser and display a webpage.
-5. **Found objects and materials** -- You will have to costume your CloneBot so that it fits in the intended setting. These materials can include doll clothes, a paper lantern, a bottle, human clothes, a pillow case, etc. Be creative! We have fabric, just ask!
-
-
-
+**Pratul Tandon (pt347), Trevor Morcott (trm75), Maria Teresa Parreira (mb2554)**
### Deliverables for this lab are:
@@ -26,7 +11,6 @@ This week's lab is a continuation of the previous week. We explore the role of b
4. Submit the items above in the lab2 folder of your class [Github page], either as links or uploaded files. Each group member should post their own copy of the work to their own Lab Hub, even if some of the work is the same from each person in the group.
### The Report
-This README.md page in your own repository should be edited to include the work you have done (the deliverables mentioned above). Following the format below, you can delete everything but the headers and the sections between the **stars**. Write the answers to the questions under the starred sentences. Include any material that explains what you did in this lab hub folder, and link it in your README.md for the lab.
## Lab Overview
For this assignment, you are going to:
@@ -41,64 +25,102 @@ D) [Wizard the robot](#part-d-wizard-the-robot)
E) [Video record the interaction](#part-e-record)
-Labs are due on Tuesdays before class. Make sure this page is linked to on your main class hub page.
-
## Part A. Provide Feedback
-You and your teammates will be assigned lab 1 submissions from one other group. Go to their github pages, view their videos, and provide them with reactions, suggestions & feedback: explain to them what you saw happening in their video. Guess the scene and the goals of the character. Ask them about anything that wasn’t clear.
-**Summarize feedback your feedback here.**
+Feedback:
+Might be important to think about how the robot may be perceived as dangerous depending on the situation - thinking about guard bot
+Similar when they are there feels like they maybe should help (accident bot) - understand it can't but may impact perception if not made clear
+Clear what each robot does and the purpose - not entirely what's the interaction with the person
+Very impressed with high quality drawings
+In the reflections, we would have liked to see more on what worked or didn't work in the videos. For instance, what felt awkward? How did they feel about the interactions?
## Part B. Site the interaction
-Think about where the interaction you are prototyping is going to occur-- on a desk? on a floor? indoors? outdoors?
-What other people and objects are in that space?
+\*\***Sketch and/or take photos of the site(s) you are considering.**\*\*
-What activities are going on in that space? What activity is the robot going to be involved in?
+SassyBot is a mobile robot stylist. It provides advice and feedback on a fit for clients visiting a store. It can also be used as a personal stylist – so, instead of being store-adjacent, it would be person-adjacent. It takes into account personal preferences and different styles. Its mobility and sensors make it a valuable asset to the shopping experience.
-\*\***Sketch and/or take photos of the site(s) you are considering.**\*\*
+
+
+Bloomingdales Fitting Room (on Roosevelt Island) or other clothing stores
\*\***Document the activities being considered.**\*\*
-\*\***What issues or opportunties arise from the site and activities?**\*\*
+SassyBot provides valuable advice for customers. It can react to customer fits, suggest alternatives, guide the client to the fitting room or across the store. We illustrate our ideas:
-## Part C. Costume the robot
+\*\***What issues or opportunities arise from the site and activities?**\*\*
-Only now should you start worrying about what the device should look like. Develop one costume so that CloneBot can fit into it's setting.
+Issues:
+* How the robot will see the person
+* How the robot will avoid other people
+* Where the robot will be stowed and interact
+* How to shoot and try the scene while respecting those in the store
+
+Opportunities:
+* Potentially ask real people
+* See what the real dimensions of the room will be
+* Explore opportunities to incorporate into existing features like the mirror
-Think about the setting of the device: is the environment a place where the device could overheat? Is water a danger?
+## Part C. Costume the robot
+Only now should you start worrying about what the device should look like. Develop one costume so that CloneBot can fit into it's setting.
+Think about the setting of the device: is the environment a place where the device could overheat? Is water a danger?
Pick one of the custumes and make it with paper or cardboard or any other material!
\*\***Include sketches of what your robot might look like here.**\*\*
-\*\***Include photos of your custumed robot here.**\*\*
+
+
+
+
+
+\*\***Include photos of your costumed robot here.**\*\*
-\*\***What concerns or opportunitities are influencing the way you've designed the robot to look?**\*\*
+
+
+\*\***What concerns or opportunities are influencing the way you've designed the robot to look?**\*\*
+
+We wanted to convey that the robot was a qualified to comment on their fashion; this is conveyed by the robot itself having good fashion.
+The robot had to feel approachable but also upscale and suitable to be found in a luxury store; humaneseque so that humans would feel it is qualified to comment on their clothing items.
+Approachable, cute and assertive as it handles sensitive and personal moments / video.
+
## Part D. Wizard the Robot
-Take a little time to set up the wizarding set-up that allows for someone to remotely control the robot while someone interacts with it. Hint: You can use Zoom to record videos, and you can pin someone’s video feed if that is the scene which you want to record.
\*\***Include your first attempts at recording the set-up video here.**\*\*
-Now, hange the goal within the same setting, and update the interaction with the paper prototype.
+
+
+https://user-images.githubusercontent.com/62056130/218634702-2cba9921-ba1a-4293-b5eb-a42b59ad8a76.MOV
+
+
\*\***Show the follow-up work here.**\*\*
+We worked on the costume and tested the mobility of the robot.
+
## Part E. Record
\*\***Take videos of your prototyped interaction.**\*\*
-\*\***Please indicate anyone you collaborated with on this Lab.**\*\*
-Be generous in acknowledging their contributions! And also recognizing any other influences (e.g. from YouTube, Github, Twitter) that informed your design.
+Videos:
+
+* https://drive.google.com/file/d/1bNEm5A9bAg4D4mWtCYiNBxggJiruMrLF/view?usp=sharing
+* https://drive.google.com/file/d/1T1b1bhXN4YpdWVYOtz7X_f2uslF33JUz/view?usp=sharing -- full interaction, on site
+
+\*\***Please mention anyone else you collaborated with on this Lab.**\*\*
\*\***Document everything here. (Particularly, we would like to see the storyboard and video, although photos of the prototype are also great.)**\*\*
-Labs are due on Tuesdays before class. Make sure this page is linked to on your main class hub page.
-### Again, deliverables for this lab are:
+Reflection
+
+* On reflection it was very difficult to film in the store. This was due to the fact that the robot got in the way, others did not want a robot near their room while they were changing and the swinging doors would have decapitated Edna if she were not more visible.
+* Additionally we noticed how you really wanted to feel seen by the robot and it was annoying if she passed judgment without a good look.
+* It was also frustrating there was no way to interrogate the bots' decisions and ask why or why not they reacted a certain way.
0. Fill in the questions along the way!
1. photos of costumed robots
diff --git a/Lab3/Readme.md b/Lab3/Readme.md
index 90fa0db..f8c96ed 100644
--- a/Lab3/Readme.md
+++ b/Lab3/Readme.md
@@ -1,3 +1,7 @@
+# Link to completed lab
+https://github.com/mteresaparreira/Mobile_HRI_Lab_Hub/tree/main/Lab3
+
+
# Make the Robot Move
**List the names and NetID for your partners here.**
diff --git a/Lab4/Readme.md b/Lab4/Readme.md
index ea8a2dd..b700f22 100644
--- a/Lab4/Readme.md
+++ b/Lab4/Readme.md
@@ -1,61 +1,61 @@
# Make the robot see
-**List the names and NetID for your partners here.**
-
+Pratul Tandon, Trevor Morcott, Maria Teresa
+
Build off of Lab 3 from last week. This week's material can be done rather quickly.
-
-
+
+
## Prep
-
+
### For this lab, you will need:
1. Your laptop
2. Pi Camera
-
+
### Before you come to the lab on Thursday, please do the following:
1. Install VNC viewer from [here](https://www.realvnc.com/en/connect/download/viewer/) if you haven't.
-
+
### Deliverables for this lab are:
-
+
0. A screenshot of the working VNC viewer with a working image view.
-
+
1. Answers to the reflection questions in Part D.
-
+
### The Report
This README.md page in your own repository should be edited to include the work you have done (the deliverables mentioned above). Following the format below, you can delete everything but the headers and the sections between the **stars**. Write the answers to the questions under the starred sentences. Include any material that explains what you did in this lab hub folder, and link it in your README.md for the lab.
-
+
## Lab Overview
For this assignment, you are going to:
-
+
A) [Connect your camera](#-a-connect-your-camera)
-
+
B) [Connect to your Pi (VNC Viewer)](#part-b-connect-to-your-pi-through-vnc-viewer)
-
+
C) [People Detection](#part-c-people-detection)
-
+
Labs are due on Tuesdays before class. Make sure this page is linked to on your main class hub page.
-
+
## Part A. Connect your camera
Plug in the Pi camera to your RPi.
-
+
## Part B. Connect to your Pi through VNC Viewer
Start VNC Viewer, if prompted to sign in, "select Use VNC without signing in" in the bottom.
-
+
In the text box "Enter a VNC Server address or search", type in `Your_RPi_IP:1` (e.g. `10.56.131.31:1`).
> When prompted "server not encrypted", click "continue"
-
+
**Password**: `student`
-
+
You should now log in to your Pi through VNC Viewer.
-
+
>
-
+
Open a terminal, install `libcamera-dev`.
-
+
```bash
sudo apt install libcamera-dev
```
>
-
+
## Part C. People Detection
First, let's test if your camera is working properly.
```bash
@@ -66,31 +66,40 @@ python3 test_camera.py
```

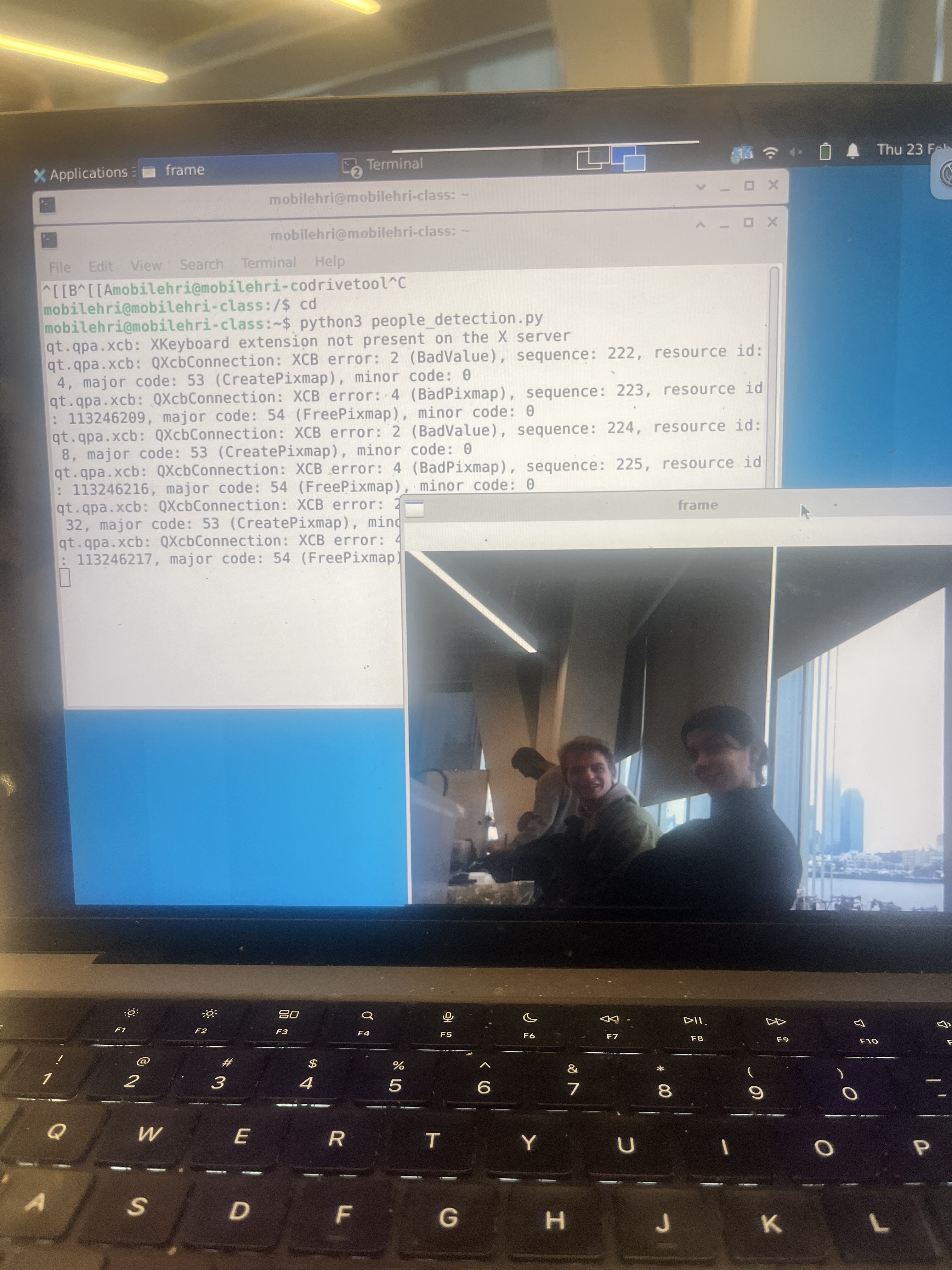

**Please include a screenshot of the working VNC viewer with a working image view.**
-This exercise is based on this [The Data Frog Tutorial](https://thedatafrog.com/en/articles/human-detection-video/#:~:text=People%20detection,work%20well%20in%20other%20cases.) online. Your CPU will get toasty, so put on a **heat sink**.
+
+This exercise is based on this [The Data Frog Tutorial](https://thedatafrog.com/en/articles/human-detection-video/#:~:text=People%20detection,work%20well%20in%20other%20cases.) online. Your CPU will get toasty, so put on a **heat sink**.
+
```
# In a terminal in VNC Viewer
curl -LJO https://raw.githubusercontent.com/FAR-Lab/Mobile_HRI_Lab_Hub/main/Lab4/people_detection.py
python3 people_detection.py
```
-
+
Optional: Another example you can try is from [PyTorch](https://pytorch.org/tutorials/intermediate/realtime_rpi.html) (installed already on your system). You will need to write a few lines of code to load the labels yourself.
-
+
## Part D. Reflection
-
+
Reflect on the following questions:
-
+
1. For your favorite prototyped interaction that you have thought of so far, reflect upon how a camera connected to your Pi could be useful.
+
+One of our prototyped interactions was the TrippingBot, a robot that trips near people, so we control for how people react when they see a robot "failing". A camera, in particular a camera with a person detection, would help automatize the system, as people near to be in the surroundings of the robot in order to notice the tripping action and, potentially, feel compeled to intervene. Also, a camera would be a pivotal part of the data collection process - we would collect RGB videos of the interactions and perform an ethnographic analysis.
+
2. What issues do you foresee with this setup?
+
+Image processing is very slow. This would constitute a significant limitation for controlling the robot. Aditionally, as we're planning to run the study "in the wild", rather than a lab environment, variables such as lighting and internet connection will play a role in hindering optimal data collection conditions.
+
3. How is the temperature? How is the speed? How is the connection?
+
+Very high temperature, very low speed, good connection but we don't foresee such good connection when running a study.
+
4. How is the view? Would it capture what you might need to see for your prototyped interaction (in question 1)?
-
-
+
+We were unable to detect people. We will probably need higher processing abilities for out final robot.
+
Labs are due on Tuesdays before class. Make sure this page is linked to on your main class hub page.
-
+
### Again, deliverables for this lab are:
-
-0. A screenshot of the working VNC viewer with a working image view.
-
-1. Answers to the reflection questions in part D.
-
+
+0. A screenshot of the working VNC viewer with a working image view
diff --git a/Lab5/Readme.md b/Lab5/Readme.md
index 81082f4..8906677 100644
--- a/Lab5/Readme.md
+++ b/Lab5/Readme.md
@@ -1,3 +1,10 @@
+# Link to finished lab
+https://github.com/mteresaparreira/Mobile_HRI_Lab_Hub/tree/main/Lab5
+
+
+
+
+
# Give the robot moves
**List the names and NetID for your partners here.**
diff --git a/Lab6/Readme.md b/Lab6/Readme.md
index 32a5d6c..ded3a7e 100644
--- a/Lab6/Readme.md
+++ b/Lab6/Readme.md
@@ -1,3 +1,7 @@
+# Link to Lab Submissionn
+
+https://github.com/mteresaparreira/Mobile_HRI_Lab_Hub/tree/main/Lab6
+
# Choreographing Movement
**List the names and NetID for your partners here.**
diff --git a/Lab7/Readme.md b/Lab7/Readme.md
index 8cff86d..cc2eb36 100644
--- a/Lab7/Readme.md
+++ b/Lab7/Readme.md
@@ -1,3 +1,8 @@
+# Link to lab submissionn
+
+https://github.com/mteresaparreira/Mobile_HRI_Lab_Hub/tree/main/Lab7
+
+
# Interact with with people + chatty robot
