High Performance Questions [ Drawing 10000+ points every second ]

[agillet76]

I am developing a Instrument control software Desktop application(.net 6, Avalonia, MVVM, ReactiveUI) that interact with an FPGA.
I am getting 10000 data points every 100ms from the FPGA
I am trying to use LiveCharts2 to display the points every second, getting the last available array of points from FPGA ( I don't need to display every 100ms , it would be nice if I could though)

I am running into an issue where it seems Livecharts2 can not keep up with that numbers of point.
With 1000 and up 5000 the ui stay responsive but with 10000 it is lagging.

I am using:
Livecharts2 20.0.0-beta.701
Avalonia 0.10.19
.Net6

I saw, from release beta.350, there might be an assembly available to improve performance, when will it be available?
Is there anything I can do in the meantime to improve my performance?

See snippet of my code below , Test application is available here: https://github.com/agillet76/livechart-avalonia-crash/tree/main

view.xaml

<lvc:CartesianChart  Width="1280" Height="640" Margin="10,0" HorizontalAlignment="Left"
                                    ZoomMode="None" EasingFunction="{x:Null}"
                                    Series="{Binding DataSeries}"
                                    DrawMarginFrame="{Binding DrawMarginFrame}"
                                    XAxes="{Binding XAxes}"
                                    YAxes="{Binding YAxes}"
                                    Title="{Binding Title}"
                                    FontSize="10"
                                    LegendPosition="Right"
                                    TooltipPosition="Hidden"
                         />

ViewModels

public ObservableCollection<ISeries> DataSeries { get; set; } = new ObservableCollection<ISeries>
    {
        new LineSeries<TimeTraceData>
        {
            Name = "PMT1",
            Fill = null,
            DataPadding = new LvcPoint(0.2f, 0),
            Stroke = null,
            // Stroke = new SolidColorPaint  {
            //     Color = SKColors.LightGreen,
            //     StrokeCap = SKStrokeCap.Round,
            //     StrokeThickness = _strokeThickness,
            //     PathEffect = new DashEffect(_strokeDashArray)
            // },

            GeometryStroke =  new SolidColorPaint(SKColors.LightGreen,1),
            LineSmoothness = 1,
            GeometrySize = 5,
            Mapping = (data, point) =>
            {
                // use the Population property in this series
                point.PrimaryValue = data.PMTsVolts[0];
                //point.SecondaryValue = point.Context.Index;
                point.SecondaryValue = data.TimestampMs;
            },
        },
    };

Reactive code in Viewmodel to trigger chart redraw with latest data acquired by fpga

var t = Fpga.TimeTraceDataList
            // Convert the collection to a stream of chunks,
            // so we have IObservable<IChangeSet<TKey, TValue>>
            // type also known as the DynamicData monad.
            .ToObservableChangeSet().Sample(TimeSpan.FromSeconds(1)).Select(x => x)
            .ObserveOn(RxApp.MainThreadScheduler)
            .SubscribeOn(RxApp.TaskpoolScheduler);

t.Subscribe(c =>
            {
                if (c.Count > 0)
                {
                    var newItems = Fpga.TimeTraceDataList.Last();
                    DataSeries[0].Values = newItems;
                    XAxes[0].MinLimit = newItems.First().TimestampMs;
                    XAxes[0].MaxLimit = newItems.Last().TimestampMs;
                    Console.Error.WriteLine($"Chart Update Trigger {_sw.ElapsedMilliseconds}");
                }
            }).DisposeWith(disposables);

c# public ObservableCollection<TimeTraceData[]> TimeTraceDataList { get; set; } = new();

TimeTraceDataList is a property of the FPGA device implementation updated on a separate thread.

Screenshots:

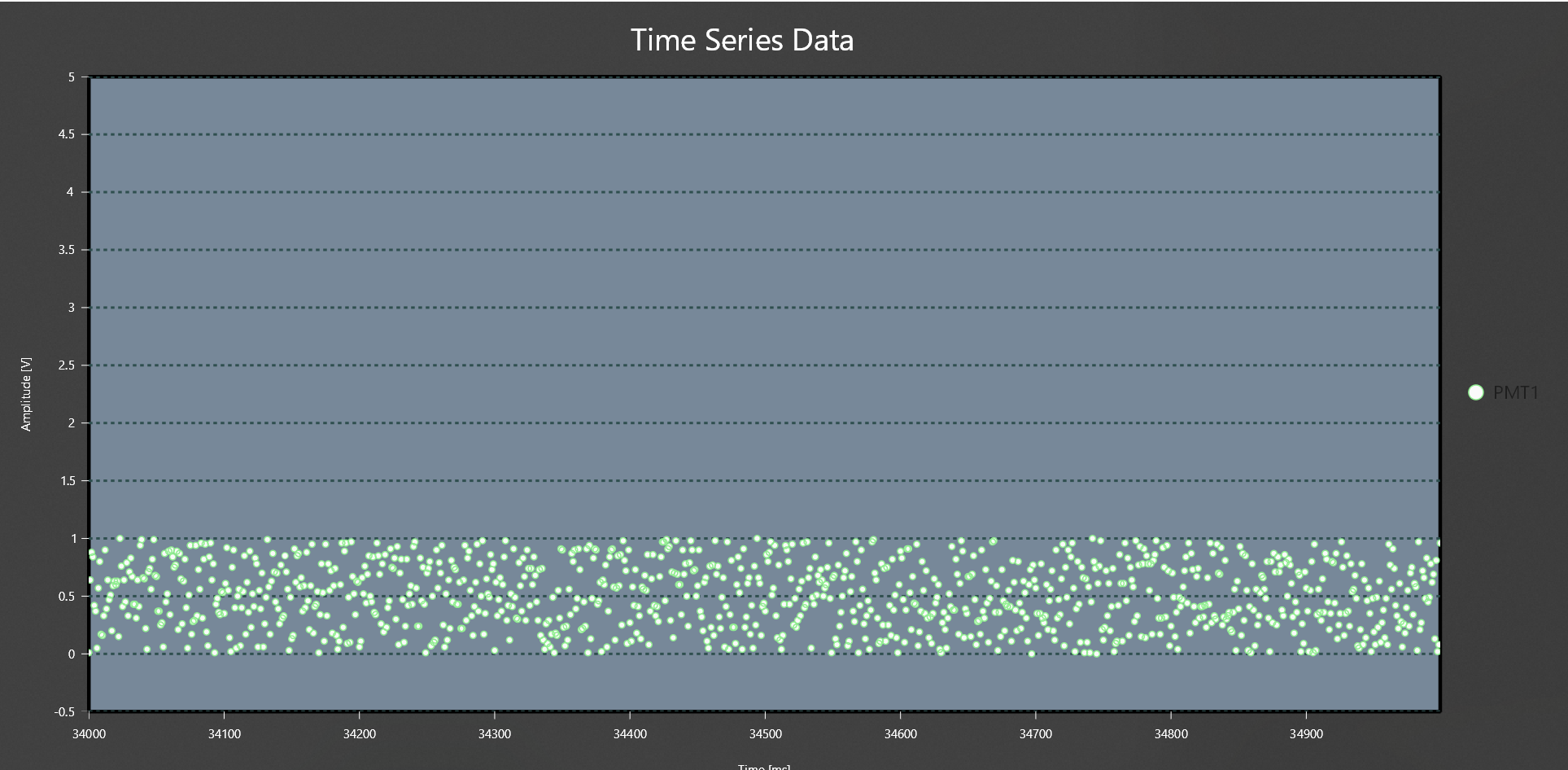

1000 data points

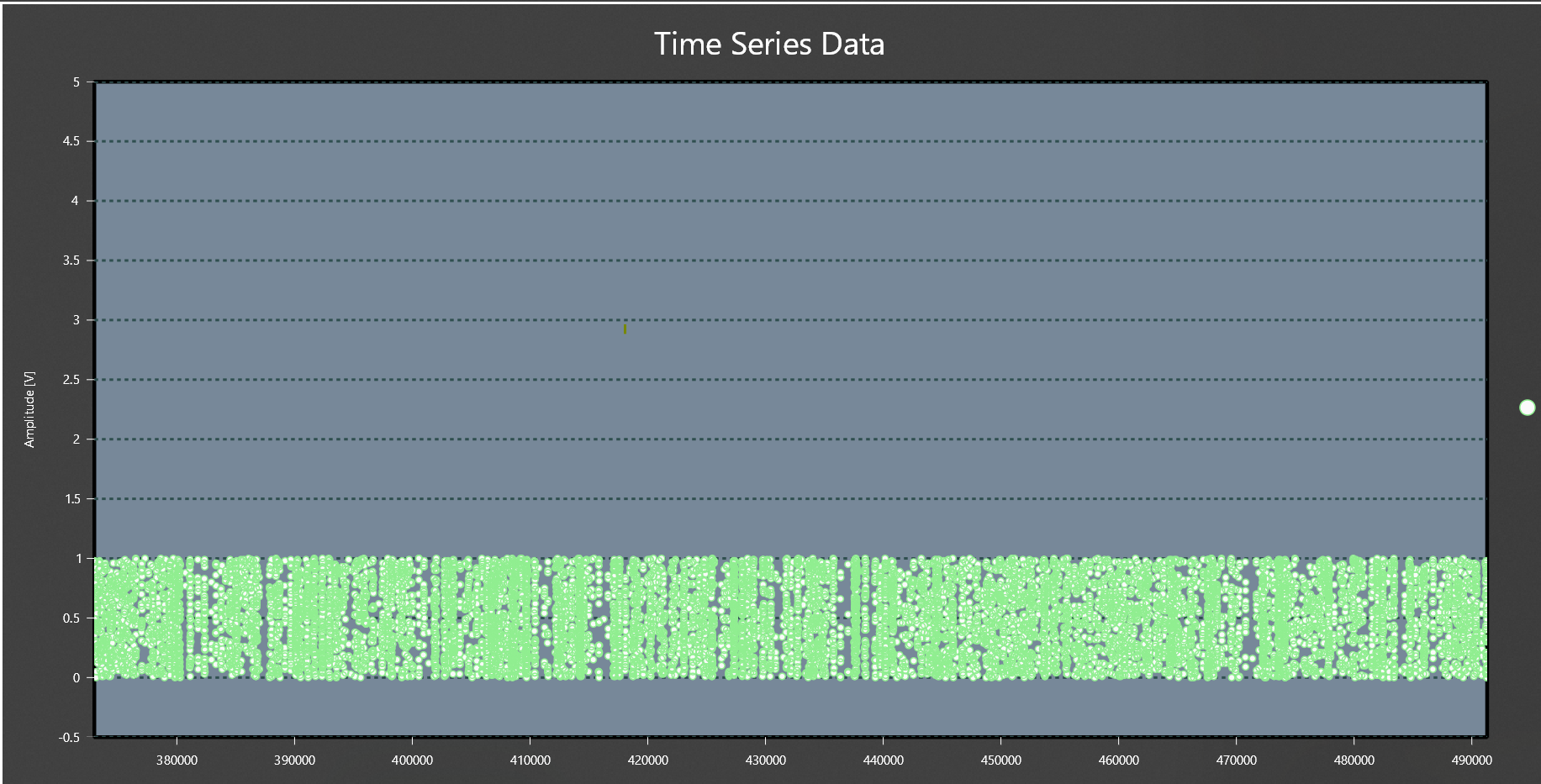

10000 data points
