fix: canvas tool correctness, modifiers and missing controls

[ProdigyRahul]

groups ten branches: the canvas tools.

tools acting on the wrong thing

• paint tools silently painted a different layer when the active one was locked or non-raster; red eye and vanishing point ignored the selection and the layer lock.
• free transform scaled about the box centre rather than the pinned corner, and the handle did not follow the cursor; it ignored the active selection and did not transform the layer's mask.
• image size did not rescale layer masks; crop and canvas size skipped group and adjustment layers, and left guides, artboards, paths and notes at the old coordinates.
• shape layers always landed at the top of the root stack; direct selection mirrored the opposite handle's length as well as its direction; path selection dragged the active path even when the click missed it.
• tool sessions were not scoped to a document, so switching tabs baked live-preview pixels in with no undo entry, and a clone source alt-clicked in one document sampled another at the old coordinates.

selection maths

feather was quantised to floor(radius / √3), so small radii did nothing and 2 px equalled 3 px; border sat entirely outside the edge for odd widths; marquees were not clipped to the canvas.

gestures that did not exist

shift-constrain and alt-duplicate on the move tool, and alt-from-centre for the marquee. the brush had no Flow, no adjustable spacing, and pressure changed only the dab's size.

before	after

alt-dragging with the move tool, and what the layers panel holds afterwards:

before	after

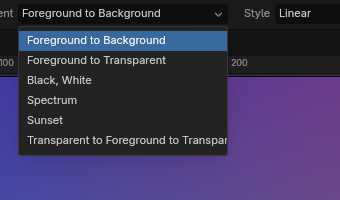

the gradient ramp was two colours

five styles but no way to put a third colour anywhere, and no per-stop opacity. the ramp is a stop list now; the two swatch-driven fills behave exactly as they did.

before	after

dodge and burn also gain Range and Exposure, blur and sharpen a Strength, and the smudge brush's mix stops being hard-coded — all defaulting to what those paths already applied.

previews that lied

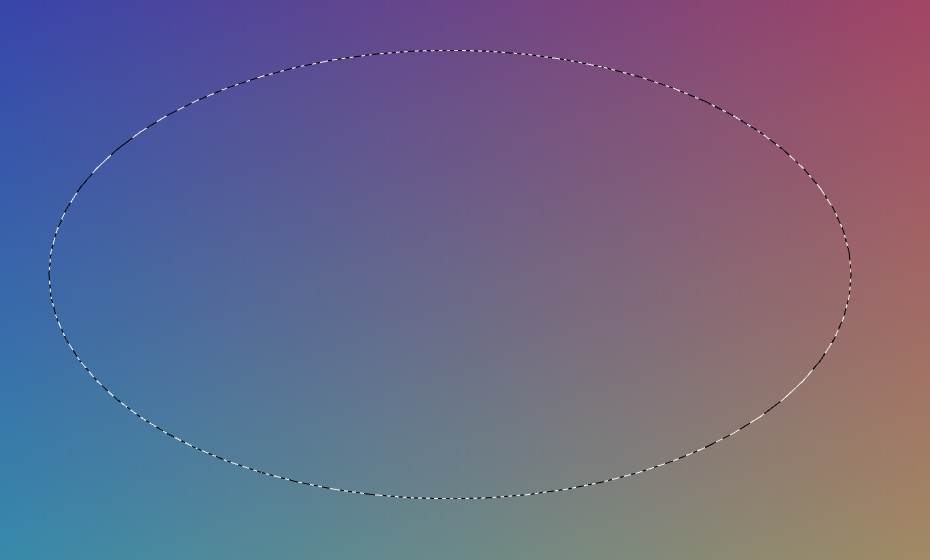

the elliptical marquee previewed a rectangle:

before	after

the rotate handle's standoff was in document units, so at 800% it sat three screen pixels off the box and at 10% it floated 240 away; the brush cursor ignored pressure and was never cleared; the polygonal lasso had no way to drop an anchor; bring forward at the top of the stack recorded a no-op edit; replace_layer_tiles was quadratic in tile count.

one merge decision worth flagging

two branches independently added on_deactivate to the paint tool — one cancelling the in-progress stroke, one committing it. i kept commit: a stroke is pixels the user already painted, switching tools should not throw it away, and finish records it as one undoable edit.

---

cargo fmt --all --check, cargo clippy --workspace --all-targets -D warnings, cargo test --workspace — 667 passed, 0 failed.

how this relates to my other open prs

these seven are independent of each other — each branches off main and each is green on its own. they do share files with my five open prs (#36, #38, #42, #44, #46), mostly workspace.rs, so whichever lands first will leave the others needing a rebase. happy to rebase in whatever order suits you, or to split any of these further if one is too big to review in a sitting.

[IAmJSD]

This review was written by Claude (Fable 5), acting on Astrid's behalf.

The majority of this 10-commit PR is correct, well-tested fixes for real bugs — the mask-tile undo fix, bezier direction-only mirroring, guides/artboards riding crop/resize, brush flow/spacing/pressure dynamics with pixel-level tests, multi-stop ramp_at, the replace_layer_tiles FxHashSet fix, and red-eye selection gating all check out. But several of the fixes introduce new, verified bugs, two of which break core interactions in ordinary use. Requesting changes.

Blockers:

1. Transform pivot jump on the second drag of a session (plugins/tools-transform/src/lib.rs:416): on_pointer_down re-anchors pivot_anchor per drag without compensating offset, so the accumulated transform is re-interpreted about the new pivot. Scale 2× with the right handle, release, then just click inside the box to move — the layer instantly jumps by half its original width. The added test only does single-drag sessions, so it can't see this.

2. Empty wand-Replace leaves a "select nothing" trap (plugins/tools-select/src/lib.rs:21,63): the new empty-Replace path runs deselect() then unconditionally sel.activate() with an all-zero mask. Since is_empty() is just !active, every brush, fill, gradient and retouch tool then silently does nothing document-wide until the user manually Deselects. The intent (empty replace clears the selection) needs deselect() without activate().

Major:

3. VanishingPointTool::on_deactivate (perspective.rs:414) calls self.on_commit(ctx) — but the tool never implements on_commit (strokes commit in on_pointer_up), so it dispatches to the ToolPlugin trait's empty default. The "fix" is a no-op with a comment claiming otherwise; self.stroke isn't even cleared, and switching tools mid-stroke still bakes preview pixels with no history entry — the exact bug commit 0250055 claims to fix.
4. transform_mask (crates/core/src/resample.rs:421,448) samples the raw tile map (0 for missing tiles) instead of LayerMask::value semantics (default_value outside bounds). For a revealing mask this (a) densely allocates all-zero tiles across the whole clip on Image Size / Free Transform (~140 MB of garbage on a 12k×12k doc with a fresh empty mask) and (b) darkens a bilinear fringe along the old bounds. The added mask-resize test asserts on raw tiles.value for an effectively no-op mask, so it verifies the wrong semantics.
5. The elliptical marquee clips the drag rect to canvas before inscribing the ellipse (tools-select/src/lib.rs:270), so a partly off-canvas drag commits a differently-proportioned ellipse than the preview showed — clip the mask, not the generating rect.
6. The feather box-blur rewrite (crates/core/src/selection.rs:570-600) replaces the O(1)-per-pixel sliding window with a per-pixel radius loop — O(w·h·r), ~150× more work at radius 250, and it runs on every marquee commit with feather set. The fractional-radius fix only needed two extra taps on the existing window.
7. on_cancel of an alt-duplicate drag (tools-basic/src/lib.rs:272) removes the copy via LayerTree::remove, which doesn't clear doc.active_layer — Esc mid-alt-drag leaves the active layer pointing at a deleted id and painting/move/transform silently no-op. The adjacent comment describes remove_layer, which is never called.
8. Exposure/Strength are applied as a * x * 2.0 (tools-paint/src/lib.rs:400): above 50%, Burn writes negative RGB unclamped into F32 tiles and Blur/Sharpen extrapolates past the convolved value (ringing). Clamp the factor to 1 or use a non-extrapolating model.

Minor: duplicated near-identical comment paragraphs in tools-transform (~486, ~545) and a fused doc-comment in liquify.rs:131 (render's docs lost); paintable_layer's "the caller reports it" comment is false — locked/hidden/non-raster layers now silently no-op with no feedback; the Alt scale-from-centre branch keeps the old half-speed handle rate the commit claims to fix; and three PR-body claims aren't implemented (vanishing point still ignores locked/selection, free transform still ignores the selection, map_geometry's doc cites rotate/flip commands that aren't wired to it). MoveTool also gets no on_deactivate, so an in-flight alt-duplicate leaks an unrecorded layer on tab-switch — the same session-scoping class this PR fixes elsewhere.

Findings 1–3 are quick, surgical fixes; 4 and 6 need a bit more care. With those addressed this merges — the underlying work is good.

[ProdigyRahul]

fixed

[IAmJSD]

This follow-up review was written by Claude (Fable 5), acting on Astrid's behalf.

This was a strong round: all twelve findings were addressed and ten are cleanly fixed with meaningful tests — the empty-Replace trap, transform_mask default-value semantics (with the old test corrected to assert the right thing), the sliding-window feather with a direct-sum comparison at fractional radii, the vanishing-point finish_stroke, the alt-duplicate cancel restoring the active layer, tone clamping, the live-pivot scale rate, and the previously-unimplemented PR-body claims (locked/selection-aware vanishing point, selection-scoped free transform, map_geometry wired to rotate/flip, MoveTool::on_deactivate). Three verified items remain, all small:

1. Major — repivot inverts the linear part in the wrong order (plugins/tools-transform/src/lib.rs:232-245): the compensation counter-rotates first, then divides by scale (the comment even says "Undo the rotation, then the scale"), but matrix() composes scale-then-rotate, so the inverse must divide by scale first, then counter-rotate. Rotation-free repivots are exact (and the new multi-drag test covers those), but scale one axis with an edge handle, rotate, then press inside to move — the layer jumps (~17 px on a 40 px box at 2×/45°). Surgical fix: swap the two steps; add a rotated repivot test.

2. Major — 90° canvas rotation destroys guides (crates/core/src/document.rs:843): the guide branch maps the position but never swaps guide.horizontal, which the two 90° ops require. Under Cw90 (x,y)→(h−y,x), a horizontal guide at pos maps (0,pos)→(h−pos,0) and keeps the y component — every horizontal guide collapses to position 0, every vertical guide lands at x = h. This branch was safe for its pre-existing axis-preserving callers (crop/resize); wiring it to Cw90/Ccw90 in this round exposed it. Flips and 180° are fine. The mapping needs an orientation swap for the 90° cases, plus a guide-rotation test.

3. Minor — corner-sliver marquee recreates the select-nothing trap (plugins/tools-select/src/lib.rs:289 + Selection::clip_to): an elliptical drag whose bounding rect clips the canvas only at a corner the ellipse never reaches (e.g. (190,190)→(400,400) on a 200×200 canvas) passes the rect-intersect guard, apply_shape sets active = true, then clip_to zeroes everything — the exact active-all-zero state finding 2 just eliminated, and with Replace it also wipes the prior selection. Deselect when the mask is empty after clip_to.

One doc nit: lift's "reproduces the layer exactly" holds only for hard edges — feathered selections recombine with a slightly translucent seam (accepted float-composite semantics, but the comment overclaims).

With those three, this merges — the underlying work here is the best of the series.

[IAmJSD]

Rebased onto current main (ef18ea4 → 6e4e336), flattening the merge commit into 12 linear commits. Two notes on what changed beyond the mechanical rebase:

• The old merge commit had accidentally reverted several things that landed on main after this branch was cut: the ICC-profile undo/PSD-writer work (set_icc_profile, EditOp::IccProfileSet, the colormgmt display-transform rebuilds and soft-proof toggle, the PSD ICC resource substitution and its tests), the compositor fixes for adjustment-layer blend modes and group fill opacity (CPU + WGSL), and the schist-bin PKGBUILD dep/checksum re-pin. The rebase restores main's versions of all of those.
• The review fixes that only existed inside the merge commit (guide-axis swap on quarter turns + test, the repivot inversion-order fix + test, mask/geometry rescale in the neural upscale path, the empty-ellipse deselect guard + test) were re-applied as the final commit, fix: address final canvas-tools review.

Workspace build and full test suite pass locally (1423 tests).
