Home Assistant IOTCONNECT Bridge

A reproducible reference implementation to bridge Home Assistant telemetry and control into Avnet IOTCONNECT.

This project shows how to:

• Publish Home Assistant “things” (entities) into MQTT in a clean, analytics-friendly way
• Bridge MQTT telemetry into IOTCONNECT using the IOTCONNECT Python Lite SDK
• Receive IOTCONNECT cloud-to-device commands and control Home Assistant via the REST API (example: switch/light on/off)

This repo intentionally contains no personal names and no credentials. All secrets are placeholders.

---

Repo layout

• ha_iotc_bridge.py - MQTT -> IOTCONNECT telemetry bridge + C2D command handler
• requirements.txt - Python dependencies for the bridge
• examples/ - Home Assistant YAML snippets you can paste/import
• systemd/ - Optional systemd service unit + instructions (for Linux hosts)

---

Architecture

Home Assistant -> (Automations + MQTT) -> Mosquitto -> ha_iotc_bridge.py -> IOTCONNECT
                                            ^
                                            |
                                     IOTCONNECT Commands
                                            |
                                       Home Assistant API

---

Step-by-step setup

1) Flash Home Assistant OS (Raspberry Pi 5)

Helpful screenshots (public links):

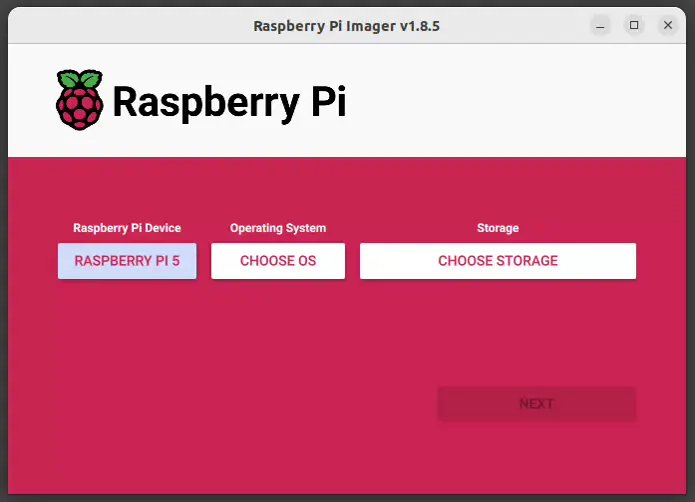

Raspberry Pi Imager start screen

Home Assistant OS selection (Raspberry Pi)

Select SD card / storage

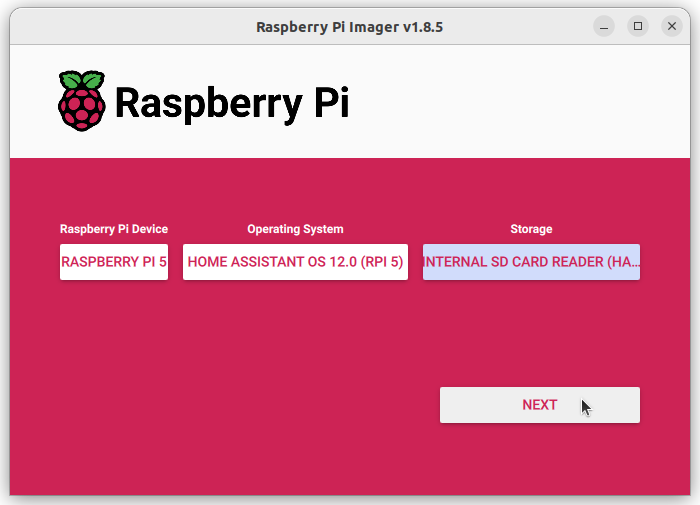

Choose Next / continue setup

After boot, open:

http://homeassistant.local:8123

Complete onboarding.

---

2) Enable SSH (Advanced SSH & Web Terminal add-on)

Install via:

Settings -> Add-ons -> Add-on Store -> search Advanced SSH & Web Terminal.

Example configuration screen:

Advanced SSH & Web Terminal add-on configuration

Notes:

• Do not include leading/trailing spaces in the username (it can break user creation).
• Prefer SSH keys if you plan to expose access beyond your LAN.

---

3) Install Mosquitto broker add-on

Install Mosquitto broker from the add-on store.

Example configuration screen:

Mosquitto broker add-on configuration

Minimal config:

logins:
  - username: mqtt
    password: mqtt
require_certificate: false
customize:
  active: false

---

4) Configure the Home Assistant MQTT integration

Go to Settings -> Devices & Services -> MQTT.

Typical settings:

• Discovery enabled
• Birth topic: homeassistant/status payload online
• Will topic: homeassistant/status payload offline

In newer Home Assistant versions, the MQTT “Listen to a topic” tool is not under Developer Tools; it lives under the MQTT integration/config pages.

---

5) Option A telemetry: publish numeric state (recommended for IOTCONNECT)

IOTCONNECT works best with typed numeric telemetry. For switches/lights, publish 0/1.

Bar lamp (TP-Link HS103 plug)

• Entity ID: switch.bar_lamp

Automation action payload:

{"value": {{ 1 if is_state('switch.bar_lamp', 'on') else 0 }},
 "source": "switch.bar_lamp"}

Topic (example): ha/lights/bar_lamp

Kitchen lights (TP-Link HS220 dimmer)

• Entity ID: light.kitchen_lights

Automation action payload:

{"value": {{ 1 if is_state('light.kitchen_lights', 'on') else 0 }},
 "source": "light.kitchen_lights"}

Topic (example): ha/lights/kitchen_lights

Automation UI screenshots (generic references):

Automation UI example (screenshot 1)

Automation UI example (screenshot 2)

See the ready-to-copy YAML in:

• examples/automation_switch_bar_lamp.yaml
• examples/automation_light_kitchen_lights.yaml
• examples/automation_outdoor_temp.yaml

---

6) (Optional) mqtt_statestream

If you want “lots of entity state” mirrored to MQTT automatically, Home Assistant can publish entity state via mqtt_statestream.

Example snippet is included at examples/sample_configuration.yaml.

Note: mqtt_statestream publishes many strings/timestamps/metadata topics. Those are great for debugging, but don’t always map cleanly to typed IOTCONNECT attributes. Option A (above) is recommended for analytics.

---

7) Create a Home Assistant Long-Lived Access Token

This token is required for IOTCONNECT -> Home Assistant control (REST API calls).

Profile page screenshot (public link):

Profile page (Long-Lived Access Tokens section)

Steps:

• Click your user (lower-left) -> Profile
• Scroll to Long-Lived Access Tokens
• Create a token and copy it (HA only shows it once)

Set the token in ha_iotc_bridge.py:

HA_TOKEN = "REPLACE_WITH_LONG_LIVED_ACCESS_TOKEN"

---

8) Install bridge dependencies

On the machine where you run the bridge:

python3 -m pip install -r requirements.txt

This bridge needs these local IOTCONNECT files next to ha_iotc_bridge.py:

• iotcDeviceConfig.json
• device-cert.pem
• device-pkey.pem

---

9) Run the bridge

python3 ha_iotc_bridge.py

You should see MQTT messages and a “sent telemetry” debug print.

---

10) Dedicated variables per device (bar lamp / kitchen lights)

If you only use a single value field in IOTCONNECT, multiple sources will compete. This bridge also emits dedicated numeric fields:

• bar_lamp (0/1)
• kitchen_lights (0/1)

based on:

• source == switch.bar_lamp or topic ha/lights/bar_lamp
• source == light.kitchen_lights or topic ha/lights/kitchen_lights

In IOTCONNECT device template telemetry, add (recommended):

• bar_lamp (Number)
• kitchen_lights (Number)

Optionally also add for debugging:

• value (Number)
• source (String)
• ha_topic (String)
• payload_raw (String)

---

IOTCONNECT commands (control)

This bridge supports the following command names (either works):

• set-ha-light
• set-ha-entity

Arguments:

1. entity_id (example: switch.bar_lamp or light.kitchen_lights)
2. state (on/off/1/0/true/false)
3. brightness (optional 0-255 for lights)

Examples:

• Turn plug OFF:
  • ["switch.bar_lamp", "off"]
• Turn dimmer ON at half brightness:
  • ["light.kitchen_lights", "on", "128"]

---

Troubleshooting

HA HTTP 401 Unauthorized (token issue)

If you see:

HA HTTP 401: 401: Unauthorized

it means the Home Assistant REST call is not authenticated.

Fast validation from the bridge host:

TOKEN='PASTE_YOUR_LONG_LIVED_ACCESS_TOKEN_HERE'
curl -s -o /dev/null -w "%{http_code}
"   -H "Authorization: Bearer $TOKEN"   http://homeassistant.local:8123/api/

Expected:

• 200 = token is valid
• 401 = token is wrong/revoked/malformed (create a new Long-Lived Access Token)

Also verify you are controlling the correct domain:

• HS103 plug is switch.bar_lamp (not light.bar_lamp)

If running as a service, restart it after updating the token:

sudo systemctl restart ha-iotc-bridge.service

---

Run as a service (optional)

See:

• systemd/README.md
• systemd/ha-iotc-bridge.service
