GCP CI/CD Shift left security demo and tutorial

This demo demonstrates shift left security pratice with Google Cloud Build, Cloud Run, Artifact Registry, Container Analysis, Bandit and Kritis, slack integraiton.

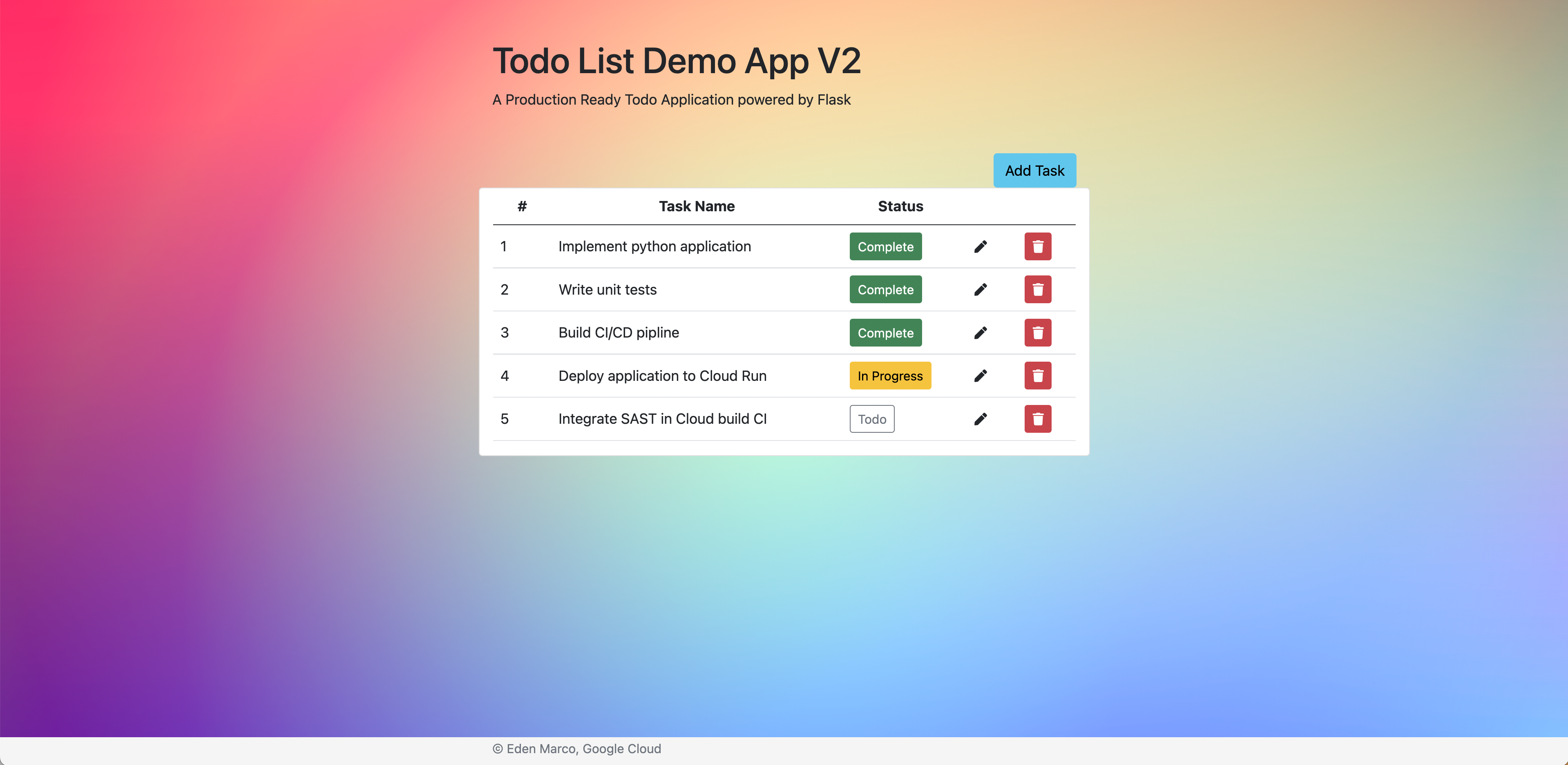

Preview

Run application locally

From root directory

flask run

Cloud Build CI/CD Setup

Create a Cloud Build trigger from your desired repository and trigger method make sure to select the option of:

Create a cloud-builds topic in pubsub (Cloud Build will publish here build results)

gcloud pubsub topics create cloud-builds

Create the Artifact Registry repository (Cloud build will push the image artifact to this repository)

gcloud artifacts repositories create todo-demo2 --location=us-east1 \
--repository-format=docker

Enable GCP relevant services API's

gcloud services enable cloudbuild.googleapis.com   containerregistry.googleapis.com
containerscanning.googleapis.com   cloudkms.googleapis.com. artifactregistry.googleapis.com

Set up the Kritis Signer custom builder

prerequiste for security policy enforcment build step) Refrenced from Binary Authorization attestations tutorial.

enable Cloud Build to access Container Analysis API (so it can fetch for each image the result fo the vulnrablity scan)

gcloud projects add-iam-policy-binding $PROJECT_ID --member serviceAccount:$PROJECT_NUMBER@cloudbuild.gserviceaccount.com --role roles/containeranalysis.notes.editor
gcloud projects add-iam-policy-binding $PROJECT_ID --member serviceAccount:$PROJECT_NUMBER@cloudbuild.gserviceaccount.com --role roles/containeranalysis.notes.occurrences.viewer
gcloud projects add-iam-policy-binding $PROJECT_ID --member serviceAccount:$PROJECT_NUMBER@cloudbuild.gserviceaccount.com --role roles/containeranalysis.occurrences.editor

Clone the Kritis repository

git clone https://github.com/grafeas/kritis.git

Navigate to the kritis/ directory

cd kritis

Build and register Kritis Signer custom builder

gcloud builds submit . --config deploy/kritis-signer/cloudbuild.yaml

Cloud Build Slack CI/CD notification integration (Optional)

Navigate to the cloud-functions/ directory

cd cloud-functions

Create staging bucket for Slack Integration code

gsutil mb gs://${PROJECT_ID}_gcb-slack-integration

Deploy python Cloud function subsribed to cloud-builds topic created earler

gcloud functions deploy slack_integration
--stage-bucket ${PROJECT_ID}_gcb-slack-integration --trigger-topic cloud-builds --runtime python38

Add a new secret to Secret Manager with the identifier: slack-webhook-url the secret value should be taken from the slack portal as the webhook URL for a created Slack application

Grant the function permission to access this secret (it is used in the python script)
