D&D Dungeon Master Copilot

Fine-Tuning Domain-Specific Embeddings for RAG

Course: BU CS 506 - Final Project
Team: Garry Kuwanto
Final Report: December 10, 2024

---

📹 Final Presentation Video

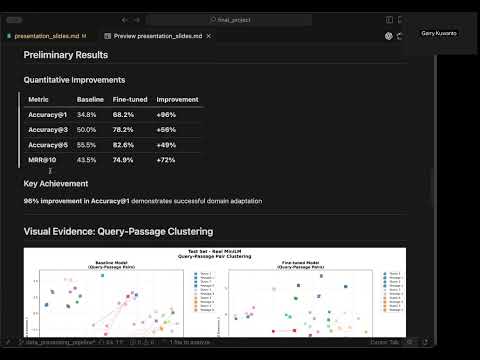

📹 Midterm Presentation Video

---

🚀 How to Build and Run (Reproduce Results)

Prerequisites

• Python 3.11+
• CUDA-compatible GPU (recommended for LFM2 inference)
• ~10GB disk space for models and data

Step 1: Install Dependencies

# Clone the repository
git clone https://github.com/YOUR_USERNAME/dnd-dm-copilot.git
cd dnd-dm-copilot

# Install all dependencies (includes llama-cpp-python with CUDA support)
make install

Step 2: Set Up Environment

# Create .env file from template
make dev-setup

# Edit .env with your API keys (required for evaluation)
# - HF_TOKEN: Hugging Face token (for downloading models/datasets)
# - DEEPSEEK_API_KEY: DeepSeek API key (for LLM-as-a-Judge evaluation)

Step 3: Download Pre-trained Models

# Download the fine-tuned embedding model from Hugging Face
make download-sbert

# Download LFM2 model for answer generation (required for demo)
make download-lfm2

# Or download both at once
make download-models

Step 4: Run the Demo

# Start the FastAPI server with demo UI
make run-api

# Visit http://localhost:8000/demo/ in your browser

Quick Start (All-in-One)

make install
make dev-setup
make download-models
make run-api

Note: download-lfm2 downloads ~1GB model file. This is required for the demo to generate answers.

---

🧪 How to Test

Run All Tests

make test

Run Specific Test Suites

make test-api      # API endpoint tests
make test-eval     # Evaluation pipeline tests
make test-data     # Data processing tests
make test-model    # Model tests

Run Tests with Coverage

make test
# Coverage report available at htmlcov/index.html

---

🖥️ Environment Support

Component	Supported
OS	Linux (tested on Ubuntu 22.04), macOS, Windows (WSL2)
Python	3.11+
GPU	NVIDIA CUDA 12.4+ (for LFM2 inference)
CPU-only	Yes (slower inference)

---

📊 Final Results

Training Distribution (D&D 3.5e) - Retrieval Metrics

Metric	Baseline	Fine-tuned	Improvement
Accuracy@1	34.8%	68.2%	+96%
Accuracy@3	50.0%	78.2%	+56%
Accuracy@5	55.5%	82.6%	+49%
MRR@10	43.5%	74.9%	+72%

Test Distribution (D&D 5e) - End-to-End Answer Quality

System	Correct Answers	Accuracy
Baseline (No RAG)	22/500	4.4%
RAG Pipeline (Fine-tuned)	206/500	41.2%

+836% Improvement in Answer Quality!

Our fine-tuned RAG system produces 9x more correct answers than the baseline model without RAG.

Visual Evidence: Query-Passage Clustering

• Baseline Model (Left): Query-passage pairs scattered with long connecting lines
• Fine-tuned Model (Right): Query-passage pairs cluster closer together with shorter lines

---

🔬 Addressing Midterm Feedback

"I question whether these metric gains are truly meaningful... suggest employing additional methods to validate the effectiveness of your accuracy improvements."

Our Response: Comprehensive Evaluation Pipeline

1. Different Distribution - Trained on D&D 3.5e, tested on D&D 5e
2. LLM-as-a-Judge - DeepSeek evaluates actual answer quality (not just retrieval)
3. End-to-End Evaluation - Full RAG pipeline (retrieval + generation)
4. Baseline Comparison - Compare against model without RAG

Evaluation Pipeline

500 5e Passages → Generate Q&A → Run RAG Pipeline → LLM Judge → Metrics

This rigorous evaluation demonstrates that our improvements are meaningful and generalizable.

---

🏗️ System Architecture

User Query → Fine-tuned MiniLM → FAISS Search → Top-k Passages → LFM2-1.2B-RAG → Answer

Components

• Fine-tuned MiniLM - Domain-specific embeddings (22M params)
• FAISS Vector Store - Fast similarity search
• LFM2-1.2B-RAG - Local LLM for answer generation
• FastAPI Backend - REST API at /api/v1/mechanics/query
• Demo UI - Interactive web interface at /demo/

---

📁 Project Structure

dnd-dm-copilot/
├── dnd_dm_copilot/
│   ├── api/                    # FastAPI backend + demo UI
│   ├── data/                   # Data processing pipelines
│   ├── evaluation/             # Evaluation pipeline (3-step)
│   ├── model/                  # LLM client (LFM2)
│   ├── training/               # Model fine-tuning
│   └── visualization/          # t-SNE analysis
├── tests/                      # Comprehensive test suite
├── data/
│   ├── processed/              # Processed datasets
│   ├── evaluation/             # Evaluation results
│   └── indices/                # FAISS indices
├── models/
│   └── sbert/                  # Fine-tuned model
├── visualizations/             # Generated plots
├── Makefile                    # Build commands
└── README.md                   # This file

---

📈 Key Findings

1. Domain-Specific Fine-Tuning Works - 96% improvement in Accuracy@1
2. Improvements Are Meaningful - 836% improvement on held-out test set
3. Model Generalizes - Works on D&D 5e despite training on 3.5e
4. Complete System Built - Production-ready RAG with demo UI
5. Rigorous Validation - LLM-as-a-Judge addresses midterm concerns

---

🔄 Reproducing the Evaluation

Full Evaluation Pipeline

# Generate 500 questions from 5e corpus
make evaluate-questions CORPUS=data/processed/5e_corpus.json

# Run RAG pipeline
make evaluate-rag LFM2_MODEL=models/lfm2/LFM2-1.2B-RAG-Q4_0.gguf

# Judge answers with LLM
make evaluate-judge

# Results saved to:
# - data/evaluation/qa_triplets.json
# - data/evaluation/rag_results.json
# - data/evaluation/judgments.json

Baseline Evaluation (No RAG)

make evaluate-baseline LFM2_MODEL=models/lfm2/LFM2-1.2B-RAG-Q4_0.gguf
make evaluate-judge-baseline

---

🤝 How to Contribute

1. Fork the repository
2. Create a feature branch (git checkout -b feature/amazing-feature)
3. Make your changes
4. Run tests (make test)
5. Run quality checks (make quality-check)
6. Commit your changes (git commit -m 'Add amazing feature')
7. Push to the branch (git push origin feature/amazing-feature)
8. Open a Pull Request

Code Quality

make format      # Format with black
make lint        # Lint with flake8
make type-check  # Type check with mypy
make test        # Run tests

---

📚 Additional Documentation

• CLAUDE.md - AI assistant guidance for development
• docs/DATA_SOURCES.md - Data source details
• docs/TECHNICAL_DETAILS.md - Technical implementation
• docs/IMPLEMENTATION_PLAN.md - Project timeline
• EVALUATION_PIPELINE.md - Evaluation guide

---

🙏 Acknowledgments

Tools & Frameworks

• sentence-transformers - Embedding model training
• FAISS - Vector similarity search
• FastAPI - Backend API
• Weights & Biases - Experiment tracking
• DeepSeek - LLM-as-a-Judge evaluation
• LiquidAI LFM2 - Answer generation

Data Sources

• m0no1/dnd-mechanics-dataset - Training data
• D&D 5e SRD - Test corpus

---

📄 License

This project is for educational purposes as part of BU CS 506.

---

📧 Contact

Garry Kuwanto - BU CS 506 Final Project

For questions about this project, please open an issue on GitHub.
