chimy

A 3D software renderer built in C using SDL2.

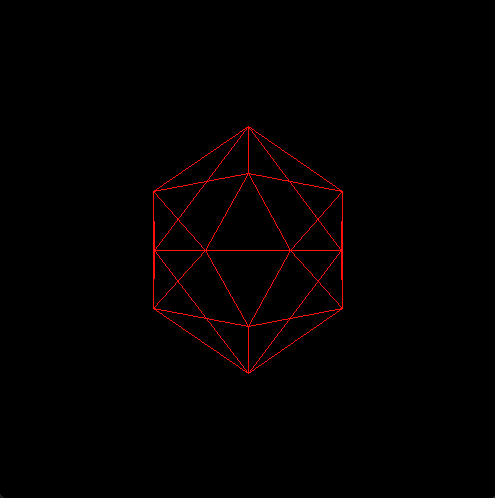

isohedron mesh

why c?

chimy is a project I've been working on for a while now. While originally created in C++, recently, I've decided to rewrite it in C. Going backwards a little bit, I know.

I wanted a more complete understanding of memory management, and low level programming. Start from the bottom and work my way up. I didn't want everything to be handed to me, and so instead of using pre-written libraries containing pre-written data structures and algorithms, I wrote 99% of the code utilized in the renderer myself.

data structures

• avl.h: generic self-balancing binary search tree.
• bst.h: generic binary search tree.
• comparators.h: for sorting and comparisons of generic structures (BSTs, AVLs, queues, lists, etc), we need generic comparators which take void* arguments and are organized in this header.
• list.h: generic, dynamic list structure that utilizes pointers to a void* array.
• ll.h: generic, linked list structure used for polygon triangulation.
• mat.h: represents matrices in $\mathbb{R}^{2 \times 2}$, $\mathbb{R}^{3 \times 3}$, and $\mathbb{R}^{4 \times 4}$ respectively.
• queue.h: generic queue data structure, used primarily in the Bentley-Ottmann algorithm.
• vec.h: represents vectors in $\mathbb{R}^2$, $\mathbb{R}^3$, and $\mathbb{R}^4$ respectively.

demo: polygon triangulation

Polygon triangulation is one of the most vital parts of this program in my opinion. Polygon triangulation is the act of decomposing complex polygons into simpler triangles, which makes a lot of different operations much simpler, such as drawing meshes composed of thousands of polygons.

polygon triangulation demo

initializing a window

creating a quick and simple program that draws a 2D triangle to the screen.

int main(void) {
	int width = 500, height = 500;

	window *w = init_window("title", width, height);
	SDL_Event e;

	set_bg_color(w, 0x00, 0x00, 0x00);
	set_color(w, 0xFF, 0x00, 0x00); // set draw color to red

	// vertices of the triangle
	v2 p1 = { 100, 100 },
	   p2 = { 200, 200 },
	   p3 = { 400, 300 };

	while (!w->quit) {
		draw_bg(w);

		while (SDL_PollEvent(&e)) {
			if (e.type == SDL_QUIT) {
				w->quit = true;
			}

			// react to other inputs here
			if (e.type == SDL_KEYDOWN) {
				// ....
			}
		}

		// draws a (non-filled) triangle
		draw_wireframe_triangle_v2(w, p1, p2, p3);

		output_screen(w);
	}

	destroy_window(w); // frees the screen
}

structs and functions

vec.h

typedef struct {
	double x, y;
} v2;

typedef struct {
	double x, y, z;
} v3;

typedef struct {
	double x1, x2, x3, x4;
} v4;

typedef struct {
	int x1, x2, x3;
} v3i;

list.h

typedef struct {
	void* data;
	int type_size;
	int length, capacity;
} list;

• list* init_list(int tsize, int c): initializes a list that holds objects of size tsize with capacity c.
• void set_l(list *l, int idx, void *v): set l[idx] = v.
• void push(list *l, void *v): push v to the back of the list l.
• void delete(list *l, int idx): deletes the object at l[idx] and resizes l.
• void* get_element(list *l, int idx): returns a pointer to the object at l[idx].
• void destroy_list(list *l): frees the list l.
• list* sort(list *l, int (*cmp)(const void *, const void *)): performs merge sort on l using comparator cmp.
• int binary_search(list *l, void *data, int (*cmp)(const void *, const void *)): performs binary search for data on l using comparator cmp.

bst.h

// generic bst
// need comparator off the bat.
typedef struct bst_node {
	void *data;
	struct bst_node *left;
	struct bst_node *right;
} bst_node;

typedef struct {
	bst_node *root;
	int type_size;
	int size;
	int (*cmp) (const void *, const void *);
} bst;

• bst_node* create_bst_node(void *v, int tsize): initializes a bst node containing v of size tsize.
• bst* init_bst(int tsize, int (*cmp)(const void *, const void *)): initializes a binary search tree that uses comparator cmp and holds objects of size tsize.
• void bst_insert(bst *tree, void *data): inserts data into the bst tree.
• bst_node* bst_search(bst *tree, void *data): searches for data in tree (returns NULL if data can't be found).
• void bst_delete(bst *tree, void *data): deletes the node containing data in tree.
• void destroy_tree(bst *tree): frees all nodes and the bst tree.

avl.h

// avl tree: self balancing binary search tree
// balance factor of node X
// BF(X) = Height(X->Right) - Height(X->Left)
// BF(X) < 0: Left Heavy
// BF(X) > 0: Right Heavy
// BF(X) = 0: Balanced
typedef struct avl_node {
	void *data;
	struct avl_node *left;
	struct avl_node *right;
	struct avl_node *parent;
	int height;
	char balance_factor;
} avl_node;

typedef struct {
	avl_node *root;
	int type_size;
	int size;
	int height;
	int (*cmp)(const void *, const void *);
	void (*prtf)(const void *);
} avl_tree;

triangle.h

typedef struct {
	v2 vt1;
	v2 vt2;
	v2 vt3;
} triangle;

polygon.h

// vertices
// edges connecting vertices
// edges: (v_j, v_k) connects vertex j to vertex k
typedef struct {
	int64_t vertex_count, edge_count;
	v2 centroid;
	list *vertices, *edges;
} polygon;

mesh.h

typedef struct mesh {
	list *F, *V;
} mesh;

window.h

• void set_color(window *w, int r, int g, int b): sets the render color to (r,g,b).
• void draw_point_v2(window *w, v2 v): draws a 2D point at v.
• void draw_line_v2(window *w, v2 p1, v2 p2): draws a line that connects p1 and p2.
• void draw_wireframe_circle_v2(window *w, v2 p, double r): draws a circle centered at p with radius r.
• void draw_filled_circle_v2(window *w, v2 p, double r): draws a filled circled centered at p with radius r.
• void draw_wireframe_triangle(window *w, triangle *t): draws a triangle w/ vertices t->vt1, t->vt2, t->vt3.
• void draw_wireframe_triangle_v2(window *w, v2 vt1, v2 vt2, v2 vt3): draws a triangle w/ vertices vt1, vt2, vt3.
• void draw_filled_triangle_v2(window *w, v2 vt1, v2 vt2, v2 vt3): draws a filled triangle w/ vertices vt1, vt2, vt3.
• void draw_wireframe_rectangle_v2(window *w, v2 v, int w, int h): draws a rectangle w/ width w and height h, top left corner positioned at v.
• void draw_filled_rectangle_v2(window *w, v2 v, int w, int h): draws a filled rectangle w/ width w and height h, top left corner positioned at v.
• void draw_wireframe_square_v2(window *w, v2 v, int l): draws a square w/ length l and top left corner positioned at v.
• void draw_filled_square_v2(window *w, v2 v, int l): draws a filled square w/ length l and top left corner positioned at v.
• void draw_wireframe_polygon(window *w, polygon *p): draws a polygon defined by p.
• void draw_point_v3(window *w, v3 v): draws the 3D point at v.
• void draw_line_v3(window *w, v3 p1, v3 p2): draws a line that connects p1 and p2 in 3D.
• void draw_wireframe_circle_v3(window *w, v3 p, double r): draws a circle in 3D centered at p with radius r.
• void draw_filled_circle_v3(window *w, v3 p, double r): draws a filled circle in 3D centered at p with radius r.
• void draw_wireframe_triangle_v3(window *w, v3 vt1, v3 vt2, v3 vt3): draws a triangle in 3D defined by vertices vt1, vt2, and vt3.
• void draw_filled_triangle_v3(window *w, v3 vt1, v3 vt2, v3 vt3): draws a filled triangle in 3D defined by vertices vt1, vt2, and vt3.
• void draw_wireframe_rectangle_v3(window *w, v3 v, int w, int h): draws a rectangle in 3D with top left corner at v, width w and height h.
• void draw_filled_rectangle_v3(window *w, v3 v, int w, int h): draws a filled rectangle in 3D with top left corner at v, width w and height h.
• void draw_wireframe_square_v3(window *w, v3 v, int l): draws a square in 3D with top left corner at v, and length l.
• void draw_filled_square_v3(window *w, v3 v, int l): draws a filled square in 3D with top left corner at v and length l.
• void draw_mesh(window *w, mesh *m): draws a 3D mesh defined by m.
