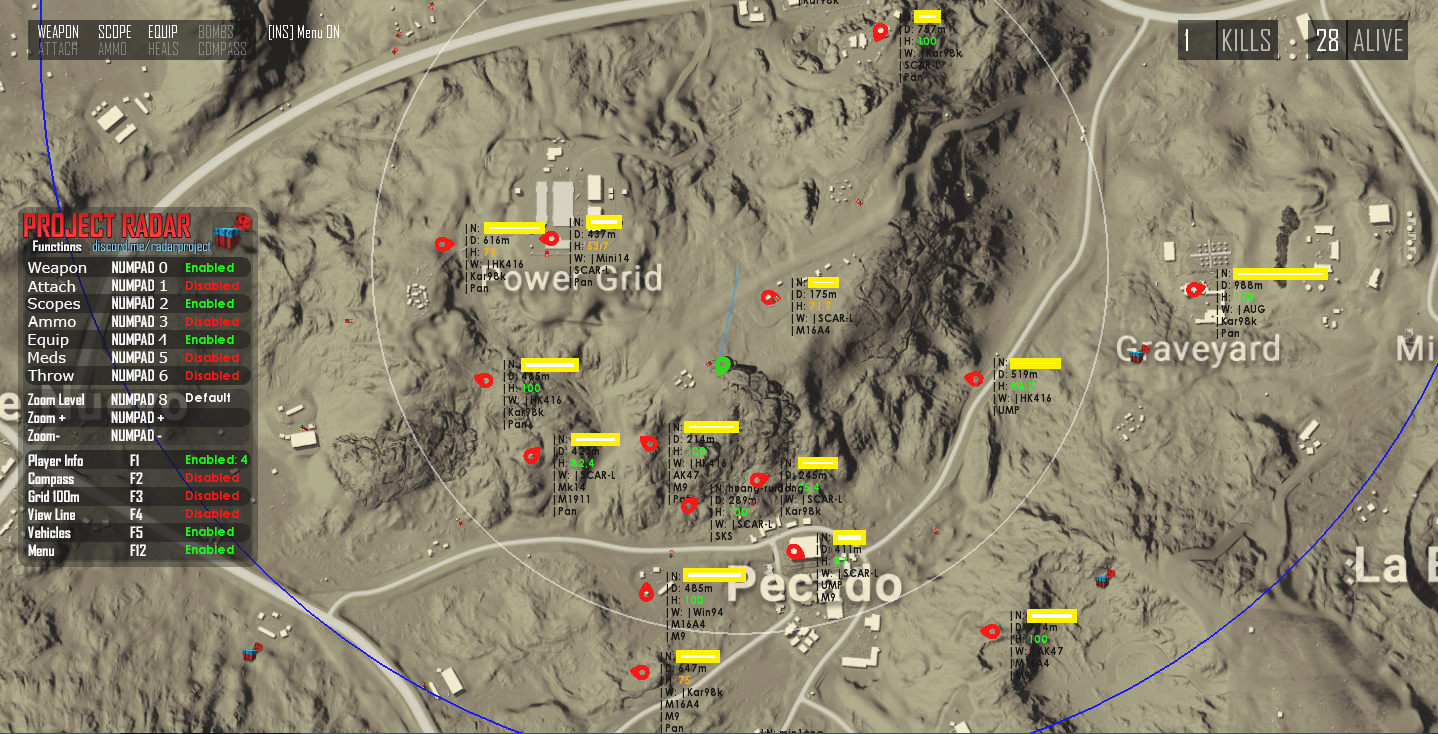

PUBG-Radar

Скачать скомпилированную версию

https://github.com/FutureXpo/PUBG-RADAR-8K/releases

Возможны ошибки в работе

При использовании Radar launcher возможны ошибки и остановка программы

Небольшая заметка

Нельзя фильтровать третий сет брони и пламегаситель на AR Большие иконки airdrop Команда отмечена другим цветом

Item Filter - Фильтры:

• Filter Weapon - Показать/Скрыть оружие
• Filter Attachments - Показать/Скрыть обвесы
• Filter Scopes - Показать/Скрыть прицелы
• Filter Ammo - Показать/Скрыть патроны
• Filter Level 2 - Показать/Скрыть броню второго уровня
• Filter Heals - Показать/Скрыть хилы
• Filter Grenades - Показать/Скрыть гранаты

Zooms - Масштаб карты:

• NUMPAD_8 -> Лут - Поиск машины - Удобное вождение
• NUMPAD_PLUS -> Zoom+ - Приблизить
• NUMPAD_MINUS -> Zoom- - Отдалить

UI - Интерфейс:

• F1 -> Change Player Info (Name, Distance, HP, Weapon) - Изменить выводимую информацию(Имя, расстояние, здоровье, оружие)
• F2 -> Toggle Compass - Компасс(выводить/нет)
• F3 -> Toggle Grind (100m)
• F4 -> Toggle View Line
• F5 -> Toggle Vehicles (icon, name or both) - Выводить информацию о транспорте(Картинка, название)

How to: Build, Install and RUN PUBG Radar

https://youtu.be/H_gud8xuP-s

Online Mode:

java -jar target\pubg-radar-1.0-SNAPSHOT-jar-with-dependencies.jar "Middle PC IP" PortFilter "Game PC IP"

Offline Mode:

You can replay a PCAP file in offline mode:

java -jar target\pubg-radar-1.0-SNAPSHOT-jar-with-dependencies.jar "Middle PC IP" PortFilter "Game PC IP" Offline

Build

1. Install Maven
2. Add Maven to your environment PATH, screenshot below.
3. Add MAVEN_OPTS environment variable, screenshot below.
4. Install JDK8
5. Add JAVA_HOME to your Environment Path, screenshot below.
6. Use the command prompt to go to your VMRadar directory (with the src folder)
7. type mvn verify install into the command prompt.

You can find detailed instructions on how to run a maven project here

IntelliJ IDEA

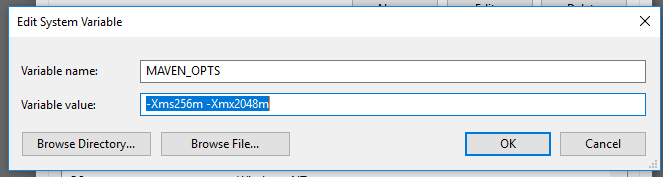

MAVEN_OPTS

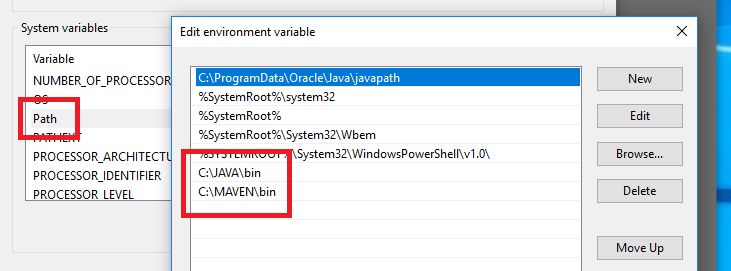

Path (Java and Maven)

JAVA_HOME

Install

VM

1. Install Virtual Box
2. Install Virtual Box Extension Pack ( https://download.virtualbox.org/virtualbox/5.2.6/Oracle_VM_VirtualBox_Extension_Pack-5.2.6-120293.vbox-extpack )
3. Install Windows 7 x64 (64 bit) (!!!NOT Windows 10!!!) on the VM (recommended: 2gb ram, 16gb storage, 2 processors) Recommended: https://softlay.net/operating-system/windows-7-all-in-one-iso-free-download-32-64-bit.html Use Windows 7 ultimate when installing
4. Install https://www.winpcap.org/install/ and https://www.microsoft.com/en-us/download/details.aspx?id=48145 on the VM
5. Install .Net framework 4.5: https://www.microsoft.com/en-us/download/details.aspx?id=30653
6. Go to settings of your VM, go to network, set attached to: 'Bridged adapter' and set promiscuous mode: 'Allow all'
7. Go to settings of your VM, go to video, set video memory to max and enable both acceleration checkboxes.
8. Run radar on VM.

No need to set up VPN using this method!

If you have OpenGL error try this:

1. Press windows + r
2. Type in msconfig and press enter
3. Go to 'boot' and check 'safe boot'
4. Apply/ok and restart VM (it will boot in safe mode)
5. Go to VirtualBox toolbar and go to Devices -> Insert Guest Additions CD image... https://linuxclub.cs.byu.edu/downloads/tools/virtualization/virtualbox/5.1.30/VBoxGuestAdditions_5.1.30.iso
6. Press Windows + E and open the CD drive for guest additions
7. Install, select Direct3D support when installing! Do not reboot after installation.
8. Go to msconfig, boot, disable safe boot and restart to normal windows

2nd PC

Download: https://www.winpcap.org/install/

This is for PC/VM where your radar runs.

1. Go to command prompt (CMD)
2. Type "ipconfig"
3. Write your IPv4 address and default gateway down
4. Use windows seacrh and look for ncpa.cpl
5. Go to your internet adapter properties and then IPv4 properties and then check "Obtain an IP address automatically" and also "Obtain DNS server address automatically"
6. Uncheck IPv6 and then just press OK
7. Then go back to ncpa.cpl (should already be open)
8. Press "alt" and go "File" from left top corner and there "New incoming connection"
9. Add someone and make sure to remember username and password then go next
10. check "Through the internet" then go next
11. Go to IPv4 properties and make sure "Network access" is checked
12. Under "IP address assignment" Check "Specifiy IP Addresses"
13. Use your Default Gateway, to create a proper IP range for "Specify IP addresses" Example: gateway is 192.168.0.1, use 192.168.0.2 to 192.168.0.10 for the ip range. Then select "OK"
14. Select "Allow access" and now we can move to our PUBG pc where we will play our games.

This is for PC where your PUBG runs.

1. For this computer also search for ncpa.cpl
2. Go to your internet adapter properties and check "Obtain an IP address automatically" and also "Obtain DNS server address automatically"
3. Uncheck IPv6 and press OK
4. Go to your "Network & Internet" settings
5. Go to "VPN" and from there "Add a VPN connection"
6. These setting are recommended: VPN Provider: Windows (build-in) Connection name: random Server name or address: This is the IPv4 address that you wrote down first VPN Type: automatic User and Password as the ones you created earlier and now click save.

Now try to connect to your VPN and if it succeeded you are ready to go

Some image for both methods: https://docs.google.com/document/d/1hrmnwMoVWmH7GTRwHEeOpGHgehKsETgJRQTacAtgIHQ

Run

---

@echo off
for /f "tokens=14" %%a in ('ipconfig ^| findstr IPv4') do set _IPaddr=%%a
echo YOUR IP ADDRESS IS: %_IPaddr%
echo "RUNNING VMRADAR"
set /p game=ENTER GAMEVM IP:
echo "%game%"
java -jar target\pubg-radar-1.0-SNAPSHOT-jar-with-dependencies.jar %_IPaddr% PortFilter "%game%"

or

@echo off
for /f "tokens=14" %%a in ('ipconfig ^| findstr IPv4') do set _IPaddr=%%a
java -jar target\pubg-radar-1.0-SNAPSHOT-jar-with-dependencies.jar %_IPaddr% PortFilter %_IPaddr% Offline
