Refactor multi-diff virtualized scrolling - #333394
Merged
Henning Dieterichs (hediet) merged 4 commits intoAug 30, 2026
Merged
Conversation
Introduce revisioned logical geometry, semantic scroll anchoring, pooled virtualized item management, layout diagnostics, and shared fake/real component fixtures. Co-authored-by: Copilot <223556219+Copilot@users.noreply.github.com> Copilot-Session: 628b1c91-5489-4cfc-baf3-ca556c6e50bc
Copilot started reviewing on behalf of
Henning Dieterichs (hediet)
August 30, 2026 13:39
View session
Contributor
There was a problem hiding this comment.
Copilot review overview
Review tier: Balanced
Findings: 5
New issues introduced by this change (5)
| Severity | Finding |
|---|---|
 |
src/vs/workbench/contrib/multiDiffEditor/browser/multiDiffEditorLayoutDebug.ts — Properties whose runtime value toggles through undefined are never represented in the patch. For… |
|
src/vs/editor/browser/widget/multiDiffEditor/diffEditorItemTemplate.ts — A valid content-size event is first stored in _observedEditorContentHeight and only copied into… |
|
src/vs/editor/browser/widget/multiDiffEditor/compressedVirtualizedScrollView.ts — Replacing the source with different items that happen to have the same heights leaves… |
|
src/vs/editor/browser/widget/multiDiffEditor/multiDiffEditorWidgetImpl.ts — scrollTop here is a logical item offset, while setScrollPosition accepts the physical scrollbar… |
|
src/vs/workbench/test/browser/componentFixtures/multiDiffEditorScroll.fixture.ts — When the observable changes while this input is focused, this autorun performs no observable read,… |
What changed in this PR
Refactors multi-diff virtualization to preserve scroll stability during geometry changes and adds layout diagnostics and regression fixtures.
Changes:
- Introduces revisioned compressed scrolling with semantic anchors and transient slack.
- Replaces generic pooling with typed virtualized item management.
- Adds JSONL diagnostics, fixtures, and focused regression tests.
| File | Description |
|---|---|
multiDiffEditorScroll.fixture.ts |
Adds interactive scrolling fixtures. |
multiDiffEditorScroll.fixture.css |
Styles the new fixtures. |
editor/multiDiffEditorFixtureUtils.ts |
Shares fixture setup utilities. |
editor/multiDiffEditor.fixture.ts |
Adopts shared fixture utilities. |
multiDiffEditorLayoutDebug.test.ts |
Tests JSON patch diagnostics. |
multiDiffEditorLayoutDebug.ts |
Implements JSONL layout logging. |
multiDiffEditor.ts |
Exposes layout debug state. |
multiDiffEditor.contribution.ts |
Registers the debug action. |
actions.ts |
Opens layout diagnostics. |
sessionChangesEditor.ts |
Exposes session layout diagnostics. |
virtualizedItemManager.test.ts |
Tests typed template pooling. |
multiDiffEditorWidget.test.ts |
Tests recycled template heights. |
compressedVirtualizedScrollLayout.test.ts |
Tests layout and anchoring behavior. |
virtualizedItemManager.ts |
Adds typed binding and pooling management. |
objectPool.ts |
Removes the superseded generic pool. |
multiDiffEditorWidgetImpl.ts |
Integrates compressed virtualization. |
multiDiffEditorWidget.ts |
Publishes debug-state access. |
multiDiffEditorViewModel.ts |
Tracks expanded content height. |
diffEditorItemTemplate.ts |
Implements strict virtualized bindings. |
compressedVirtualizedScrollView.ts |
Manages anchored scrolling and slack. |
compressedVirtualizedScrollLayout.ts |
Computes revisioned logical geometry. |
hideUnchangedRegionsFeature.ts |
Preserves anchors during region expansion. |
diffEditorWidget.ts |
Adds scroll-anchor callbacks. |
💡 Add a code-review agent skill or configure MCP servers for context-aware, tailored reviews. Learn more in the docs.
Comment on lines
+76
to
+89
| for (const key of Object.keys(previous)) { | ||
| if (!hasKey(next, { [key]: true })) { | ||
| operations.push({ op: 'remove', path: toJsonPointer([...path, key]) }); | ||
| } | ||
| } | ||
| for (const [key, value] of Object.entries(next)) { | ||
| if (!hasKey(previous, { [key]: true })) { | ||
| if (value !== undefined) { | ||
| operations.push({ op: 'add', path: toJsonPointer([...path, key]), value }); | ||
| } | ||
| } else if (value !== undefined && previous[key] !== undefined) { | ||
| appendJsonPatchOperations(operations, createJsonPatch(previous[key], value, [...path, key])); | ||
| } | ||
| } |
Comment on lines
+251
to
+253
| public getExpandedContentHeight(): number { | ||
| return this._editorContentHeight.get() + this._outerEditorHeight; | ||
| } |
| leadingScrollSlack: this._leadingScrollSlack, | ||
| trailingScrollSlack: this._trailingScrollSlack, | ||
| }, tx); | ||
| } else if (geometryChanged) { |
| range: options?.range, | ||
| }); | ||
| this._scrollableElement.setScrollPosition({ scrollTop }); | ||
| this._scrollView.setScrollPosition({ scrollTop }); |
Comment on lines
+1474
to
+1478
| store.add(autorun(reader => { | ||
| if (dom.getActiveElement() !== input) { | ||
| input.value = formatNumber(value.read(reader)); | ||
| } | ||
| })); |
Contributor

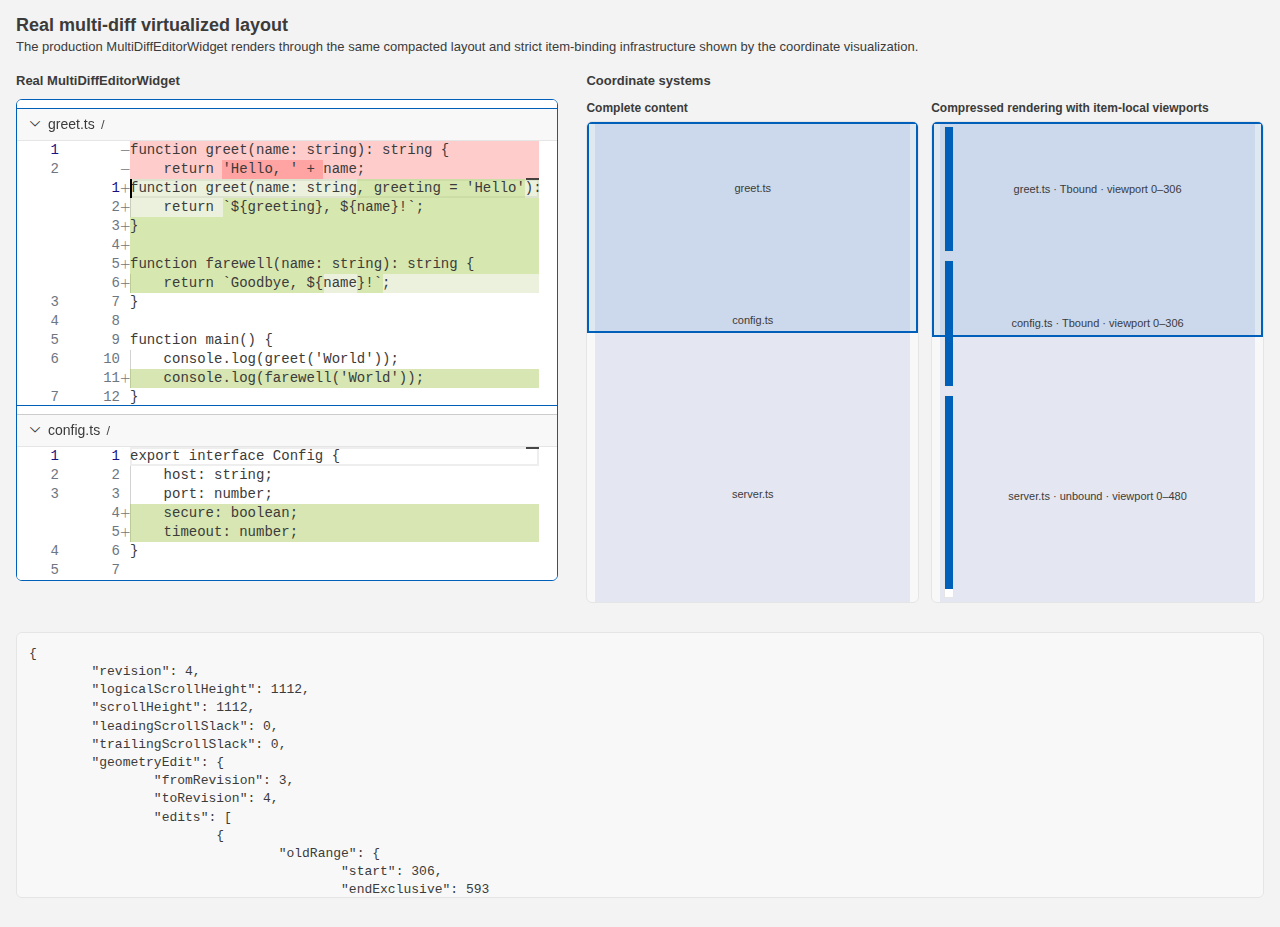

Screenshot ChangesBase: Changed (2)
|
| Before | After |
|---|---|
 |
 |
editor/multiDiffEditor/MultiDiffEditorIncrementalResolved/Light
| Before | After |
|---|---|
 |
 |
Added (6)
editor/multiDiff/multiDiffEditorScroll/ScrollModel/Dark
editor/multiDiff/multiDiffEditorScroll/ScrollModel/Light
editor/multiDiff/multiDiffEditorScroll/TemplatePool/Dark
editor/multiDiff/multiDiffEditorScroll/TemplatePool/Light
editor/multiDiff/multiDiffEditorScroll/RealWidget/Dark
editor/multiDiff/multiDiffEditorScroll/RealWidget/Light
Detach manager output from source observables during disposal so ref-counted diff view models are released regardless of downstream teardown order. Move dependent class-field initialization into constructors. Co-authored-by: Copilot <223556219+Copilot@users.noreply.github.com> Copilot-Session: 628b1c91-5489-4cfc-baf3-ca556c6e50bc
Wait for the responsive-layout diff computation before disposing the test widget, and revert the unrelated virtualized item manager experiment. Co-authored-by: Copilot <223556219+Copilot@users.noreply.github.com> Copilot-Session: 628b1c91-5489-4cfc-baf3-ca556c6e50bc
Tie references retained across diff model transactions to the widget lifetime so synchronous teardown releases them immediately. Co-authored-by: Copilot <223556219+Copilot@users.noreply.github.com> Copilot-Session: 628b1c91-5489-4cfc-baf3-ca556c6e50bc
Ladislau Szomoru (lszomoru)
approved these changes
Aug 30, 2026
Henning Dieterichs (hediet)
deleted the
hediet/multi-diff-virtualized-scrolling
branch
August 30, 2026 19:02
