Complete DevOps Project 1: Infrastructure Pipeline for Node.js Application

Introduction

This guide walks through creating an infrastructure pipeline to deploy a Node.js application using Terraform, Jenkins, Ansible, Docker and Slack. The application will be hosted on an EC2 instance within a private VPC and exposed on port 3000 via an Application Load Balancer.

Prerequisites

• AWS account with appropriate permissions
• Terraform installed
• Jenkins installed
• Ansible installed
• Docker installed
• Slack installed
• Git installed
• A sample Node.js application

Step by Step Guide

1. Set up Terraform to do a bastian host configuration

Create a main.tf file to define your AWS infrastructure. Also create other infrastructure files, This includes files for:

• A VPC
• Private and public subnets, route tables, and internet gateways, and NAT gateway with elastic ip
• Security groups for a bastion host and your application
• An EC2 instance for the bastion host, which will be used to access your private subnet
• An EC2 instance for your application server, running Amazon Linux
• An Application Load Balancer to expose your application

2. Configure Jenkins to use the private subnet and bastion host

Create an SSH config file ~/.ssh/config to proxy into your private subnet through the bastion host.

3. Configure Ansible

• Create an inventory file inventory.ini which will contain the IP address of your bastion host and application server (private subnet)
• Create a playbook jenkins_master.yml to configure your bastian server as a Jenkins master
• Create a playbook jenkins_slave.yml to configure your application server as a Jenkins slave

4. Configure the slave in the Jenkins dashboard

Add a new node in the Jenkins dashboard pointing to your application server.

5. Create a Jenkins pipeline to deploy your application

Create a Jenkinsfile in your Node.js application repository to:

• Check out code from the main branch
• build the docker image for the docker file in the repository
• The docker will: Install Node.js dependencies with npm install and start the application with npm start exposed on port 3000
• Jenkins will push the docker image to Docker Hub
• Jenkins slack notfier will send a notification in slack that the pipline is completed successfully and the docker image is pushed to docker hub

6. Run the container on the application server

• pull the docker image from Docker Hub
• run the docker image on the application server

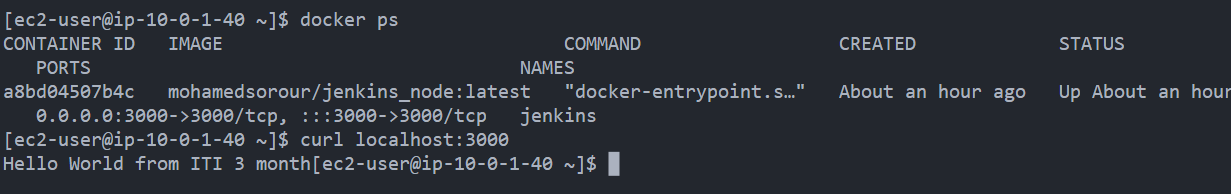

7. Test your application

curl on your Application server URL to test connectivity.

Documentation

See the README.MD file for full documentation.
