Complete DevOps Project 2: Terraform Multi-Environment Infrastructure Project

This project demonstrates the use of Terraform to create a complete infrastructure setup, including networking, RDS instances, and Elastic Cache. The project is organized into separate environments (dev and prod) using workspaces and incorporates a Lambda function to send email notifications when the infrastructure state changes.

Table of Contents

• Overview
• Features
• Prerequisites
• Usage
• License

Overview

This project provisions the following resources:

• Networking components such as VPC, Internet Gateway, NAT Gateway, Route Tables, and Security Groups.
• EC2 instances for bastion and application hosts.
• RDS instance and Elastic Cache using Terraform modules.
• Separate workspaces for dev and prod environments.
• A Lambda function to detect changes in the Terraform state file and send email notifications.

Features

1. Networking

The project creates a VPC with the following components:

• An Internet Gateway to provide a connection between the VPC and the internet.
• A NAT Gateway to allow instances in private subnets to access the internet.
• Public and private subnets for hosting various resources.
• Public and Private Route Tables to manage traffic between subnets and the internet.
• Security Groups for allowing SSH from the public internet and application access within the VPC.

2. EC2 Instances

Two EC2 instances are created in this project:

• A bastion host with a public IP address and an associated Security Group for SSH access. This instance is placed in the public subnet.
• An application host with a private IP address and an associated Security Group for application access. This instance is placed in the private subnet.

3. Database and Cache

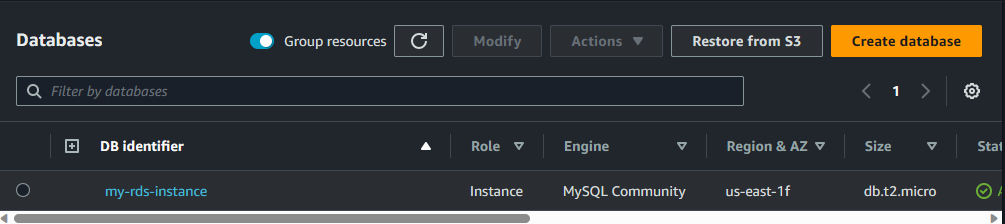

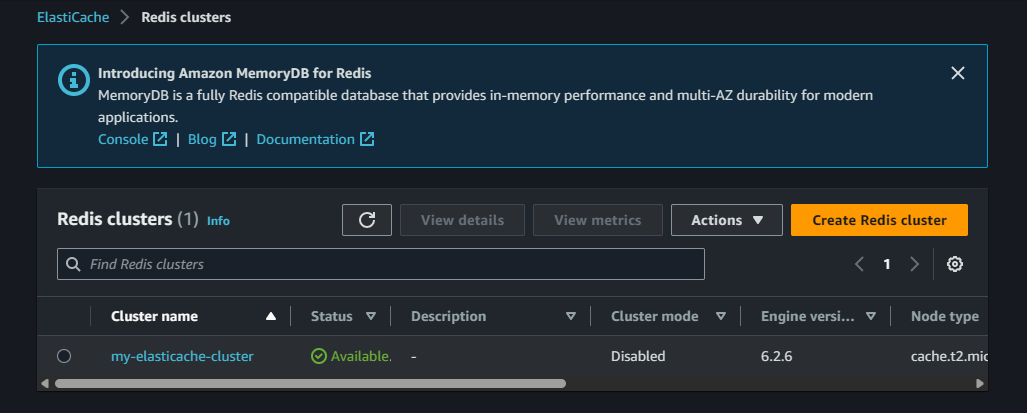

An RDS instance and Elastic Cache are provisioned using Terraform modules:

• The RDS instance is created using the AWS RDS service and is managed by Terraform.
• The Elastic Cache instance is created using the AWS RDS service and is managed by Terraform.

4. Workspace and Environment Setup

The project is organized into separate environments (dev and prod) using workspaces:

• Workspaces are created for the dev and prod environments.
• Variable definition files (.tfvars) are used to manage different configurations for each environment.
• A local-exec provisioner is used to print the public IP of the bastion host.

5. Additional Features

• The infrastructure code is uploaded to a Github project.
• A Lambda function is set up to trigger when changes are detected in the Terraform state file. The function sends email notifications for these changes.

Prerequisites

• Terraform 0.12.x or later
• AWS CLI and an AWS account with necessary permissions

Usage

1. Clone the repository:

git clone https://github.com/yourusername/complete-devops-project-2.git
cd complete-devops-project-2

2. Initialize Terraform:

terraform init

3. Create a new Terraform workspace for the desired environment (dev or prod):

terraform workspace new <workspace_name>

4. Update the respective .tfvars file with the required values for your environment.

5. Apply the Terraform configuration:

terraform apply -var-file=<environment>.tfvars

6. To destroy the infrastructure, run:

terraform destroy -var-file=<environment>.tfvars

License

This project is licensed under the MIT License. See the LICENSE file for details.
