Stationary Wavelet Transform PyTorch

This code provides support for computing the 2D stationary discrete wavelet and its inverse, and passing gradients through using pytorch. It is developed based on https://github.com/fbcotter/pytorch_wavelets and a supplement to that project.

How to use

import pywt
import torch

import matplotlib.pyplot as plt
import numpy as np
import torch.nn as nn
import torch.nn.functional as F

J = 3
wave = 'db1'
mode='symmetric'

img_1 = pywt.data.camera()
img_2 = pywt.data.ascent()
img = np.stack([img_1, img_2], 0)

input = torch.tensor(img).reshape(2,1,512,512).float()

sfm = SWTForward(J, wave, mode)
ifm = SWTInverse(wave, mode)

coeffs = sfm(input)
recon = ifm(coeffs)

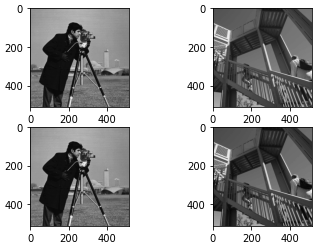

plt.subplot(2,2,1), plt.imshow(recon[0,0], cmap='gray')
plt.subplot(2,2,2), plt.imshow(recon[1,0], cmap='gray')

plt.subplot(2,2,3), plt.imshow(input[0,0], cmap='gray')
plt.subplot(2,2,4), plt.imshow(input[1,0], cmap='gray')
