Taking a play from my enterprise world. This is a compute server only running Docker and VMs.
| Preview | Product Name | Component Specifications & Notes |
|---|---|---|
 |

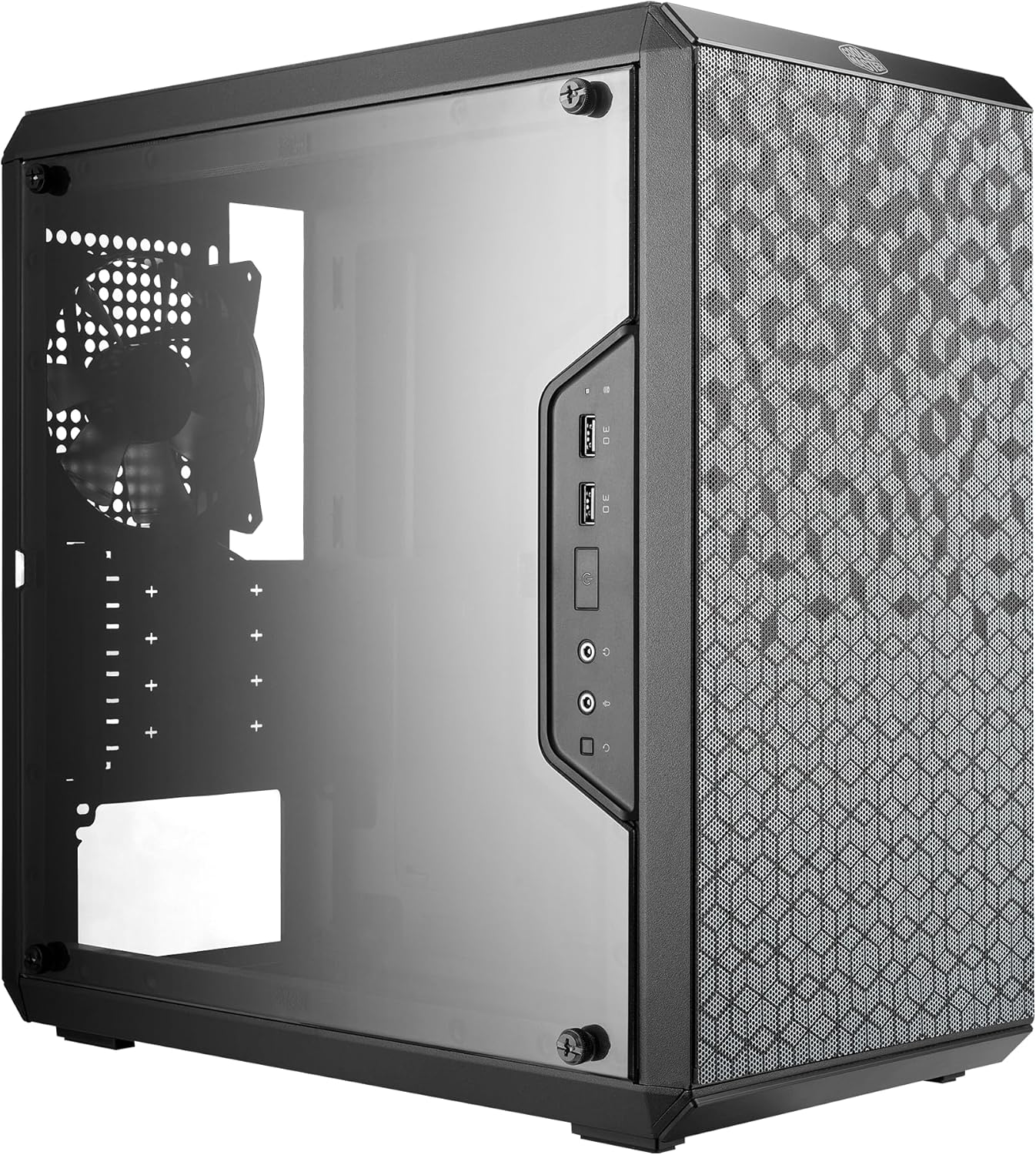

Cooler Master MasterBox Q300L Micro-ATX Tower{:target="_blank"} | Micro-ATX form factor case layout |
 |

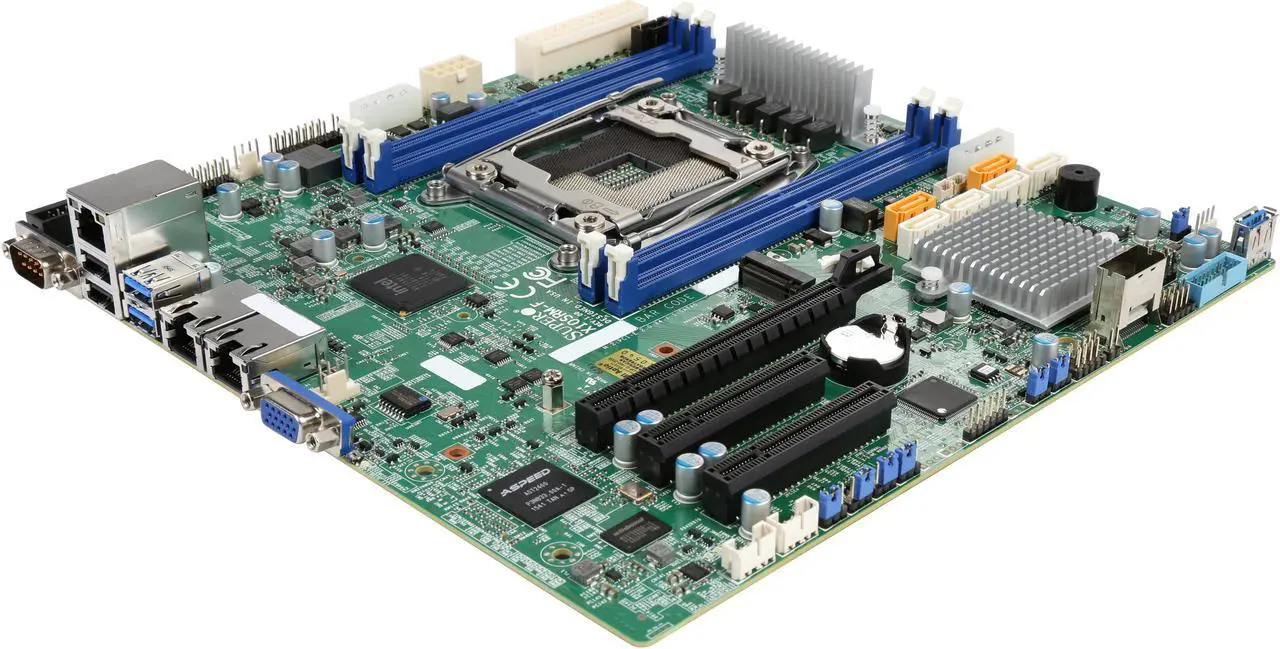

SUPERMICRO X10SRM-F Micro ATX Server Motherboard R3{:target="_blank"} | LGA 2011 Intel C612 chip platform |
 |

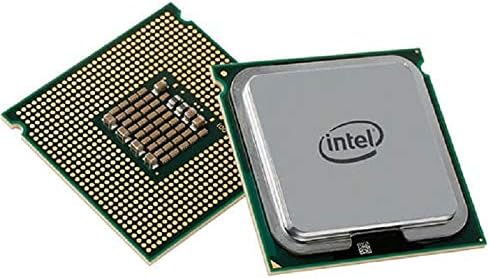

Intel Xeon E5-2650 V4 Processor (Renewed){:target="_blank"} | SR2N3 12-Core 2.2GHz 30MB Cache LGA 2011-3 |
 |

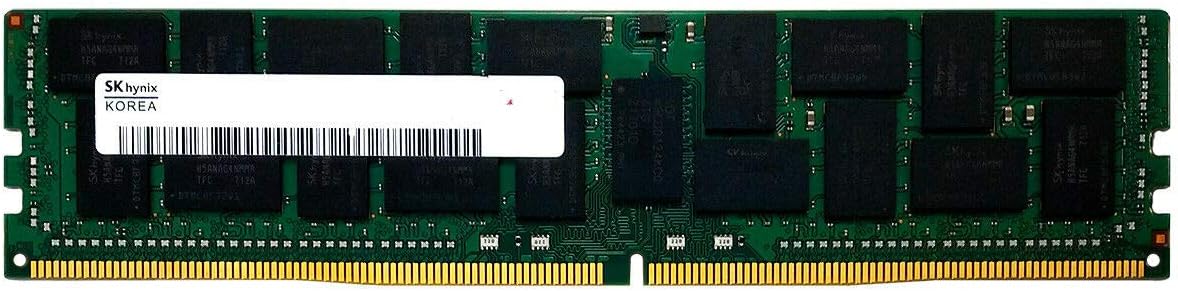

SK HYNIX 32GB PC4-19200T-R Server Memory{:target="_blank"} | HMA84GR7MFR4N-UH DDR4-2400 ECC RDIMM 2Rx4 • 128GB total setup of ECC RAM |
 |

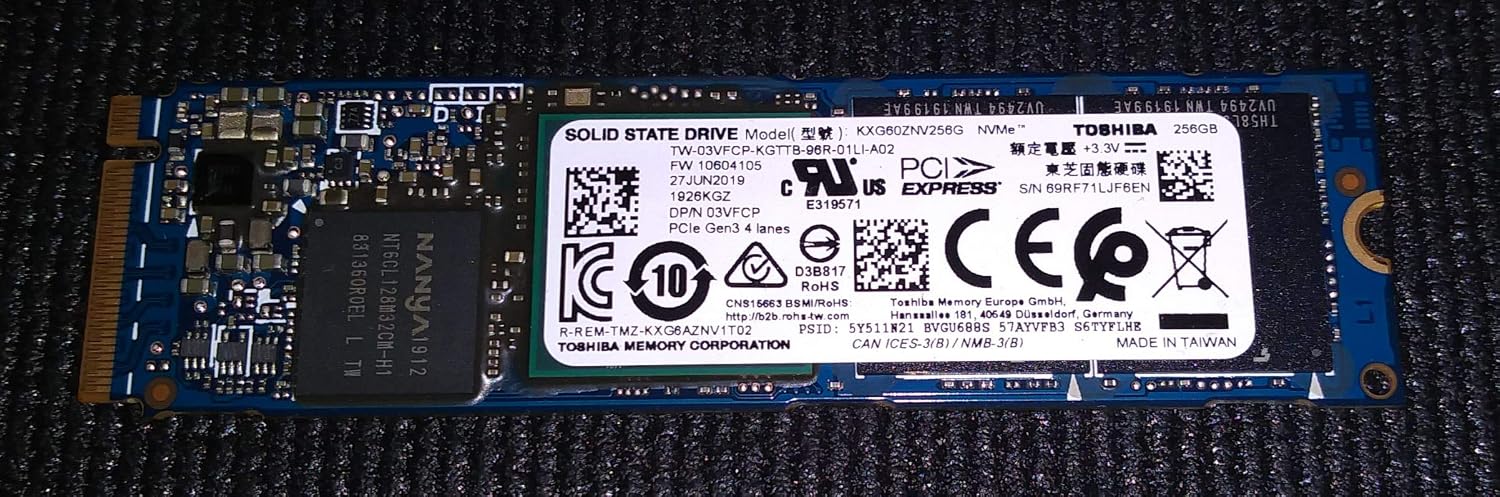

Toshiba KXG60ZNV256G NVMe M.2 SSD{:target="_blank"} | 3MM Height 80MM Length Single Sided TLC • 2 for a mirrored cache to run Docker/VMs |
 |

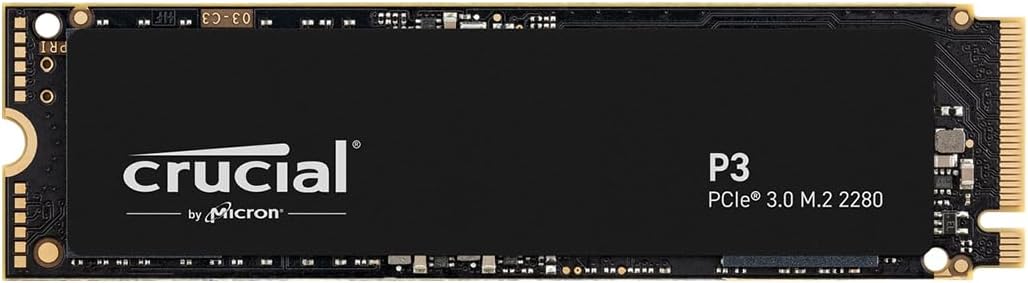

Crucial P3 1TB Gen3 3D NAND NVMe M.2 SSD{:target="_blank"} | High speed data layer drive • Cache dedicated to downloads/extractions |
 |

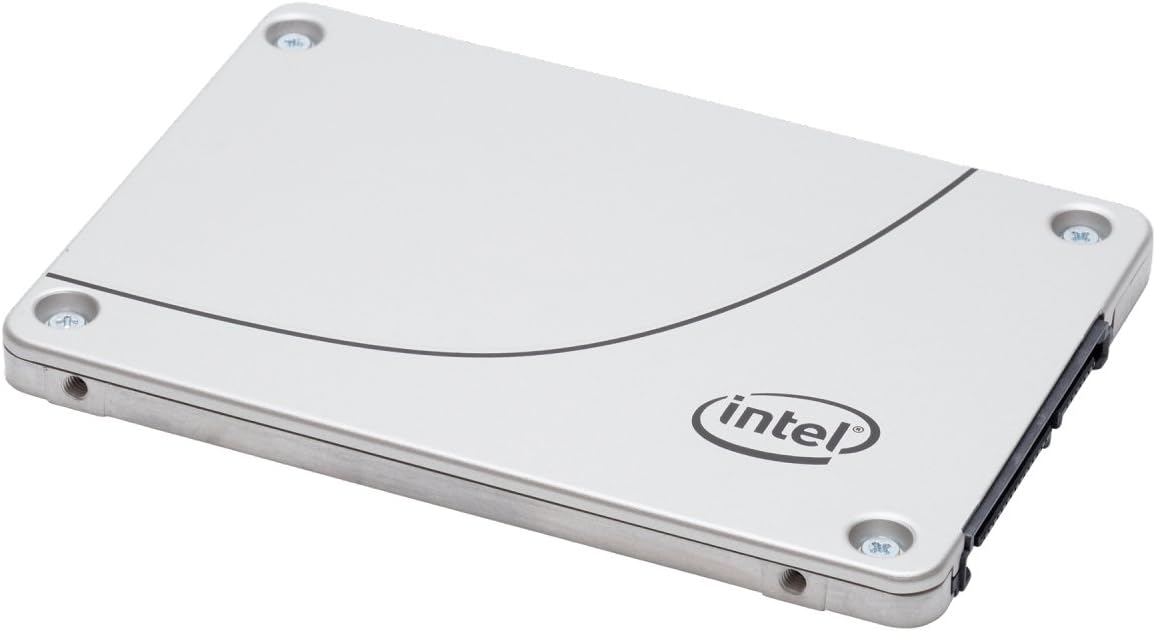

Intel SSD DC S4500 1.92TB Enterprise SSD{:target="_blank"} | 3D TLC SATA 6Gb/s 2.5-Inch drive tier • 1 drive for array overflow protection if cache fills |
 |
be quiet! Shadow Wings 2 120mm PWM Fan{:target="_blank"} | Silent low noise chassis cooling fan • Front and rear fans for the case |
 |

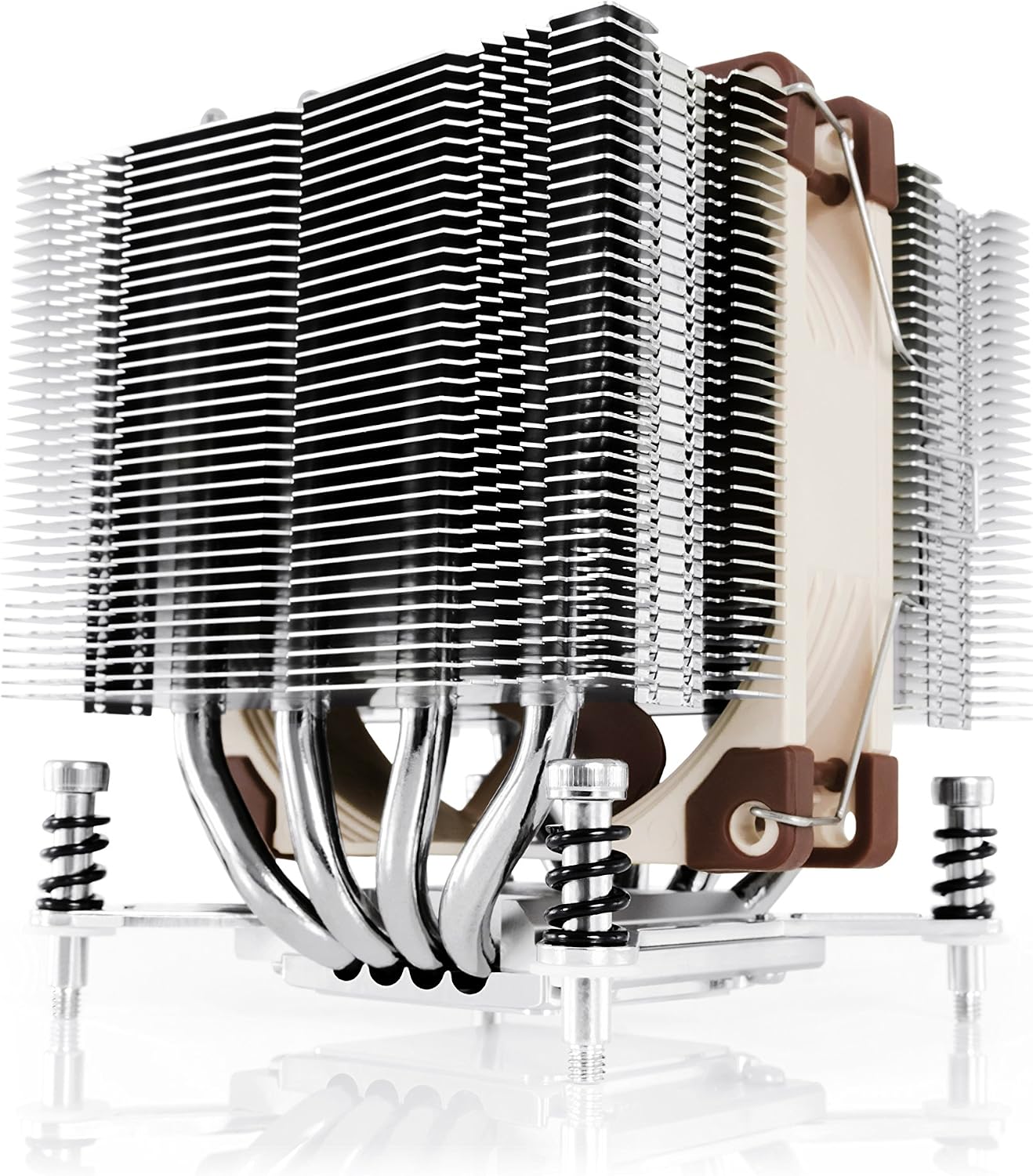

Noctua NH-D9DX i4 3U Premium CPU Cooler{:target="_blank"} | High performance heatsink for Intel Xeon LGA20xx |
 |

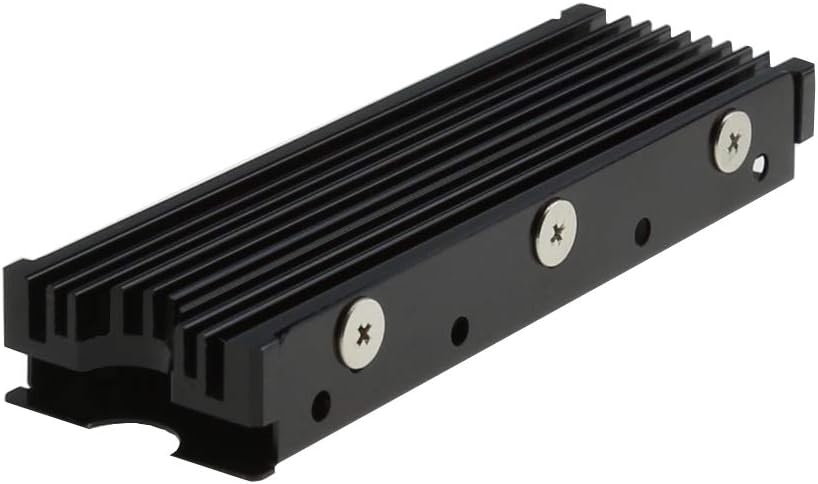

M.2 2280 SSD Heatsink Block{:target="_blank"} | Thermal management accessory • Attached to the download M.2 drive |
 |

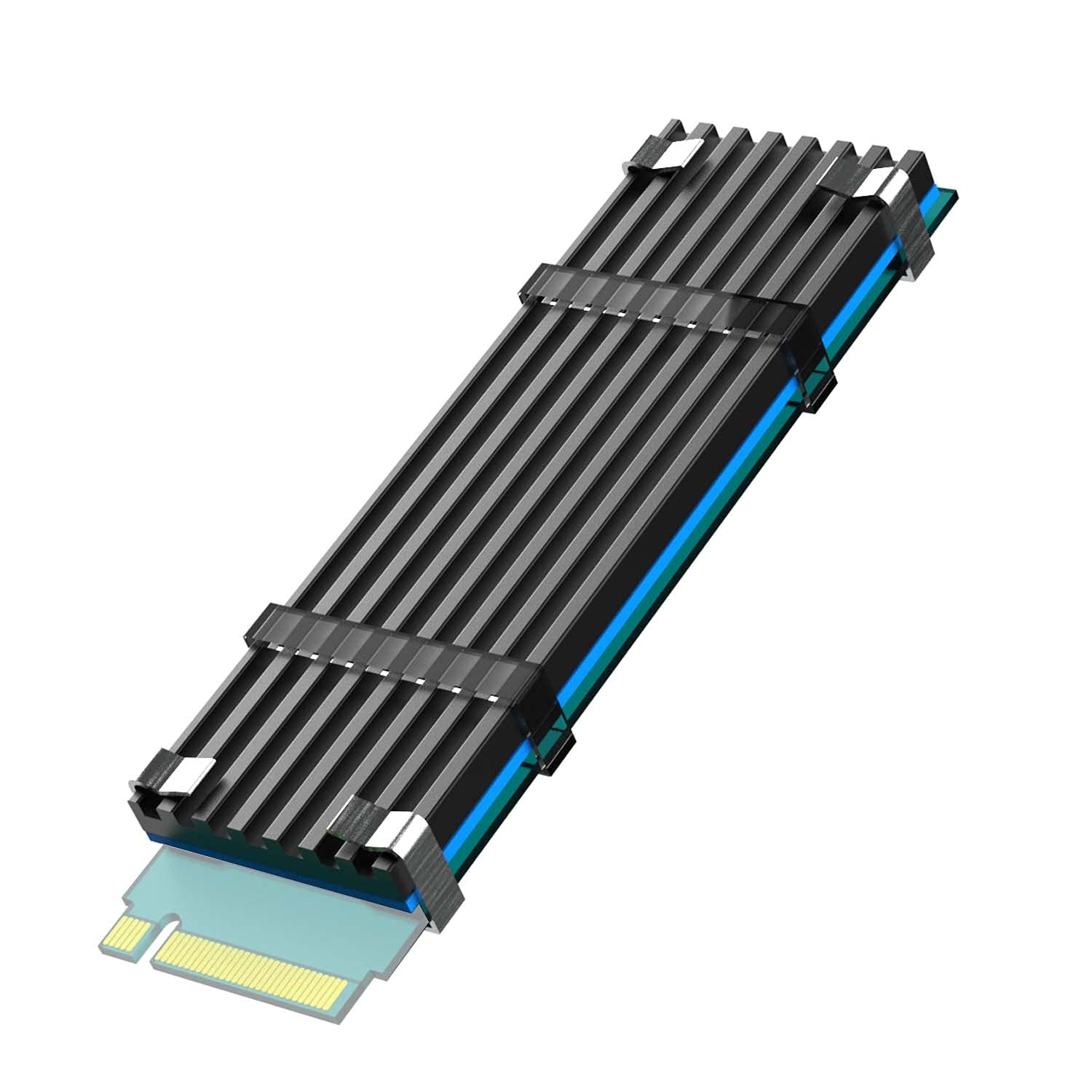

GLOTRENDS M.2 Heatsink for 2280 SSD{:target="_blank"} | Aluminum cooling fin plate • Attached to the dual app/VM M.2 drives |
 |

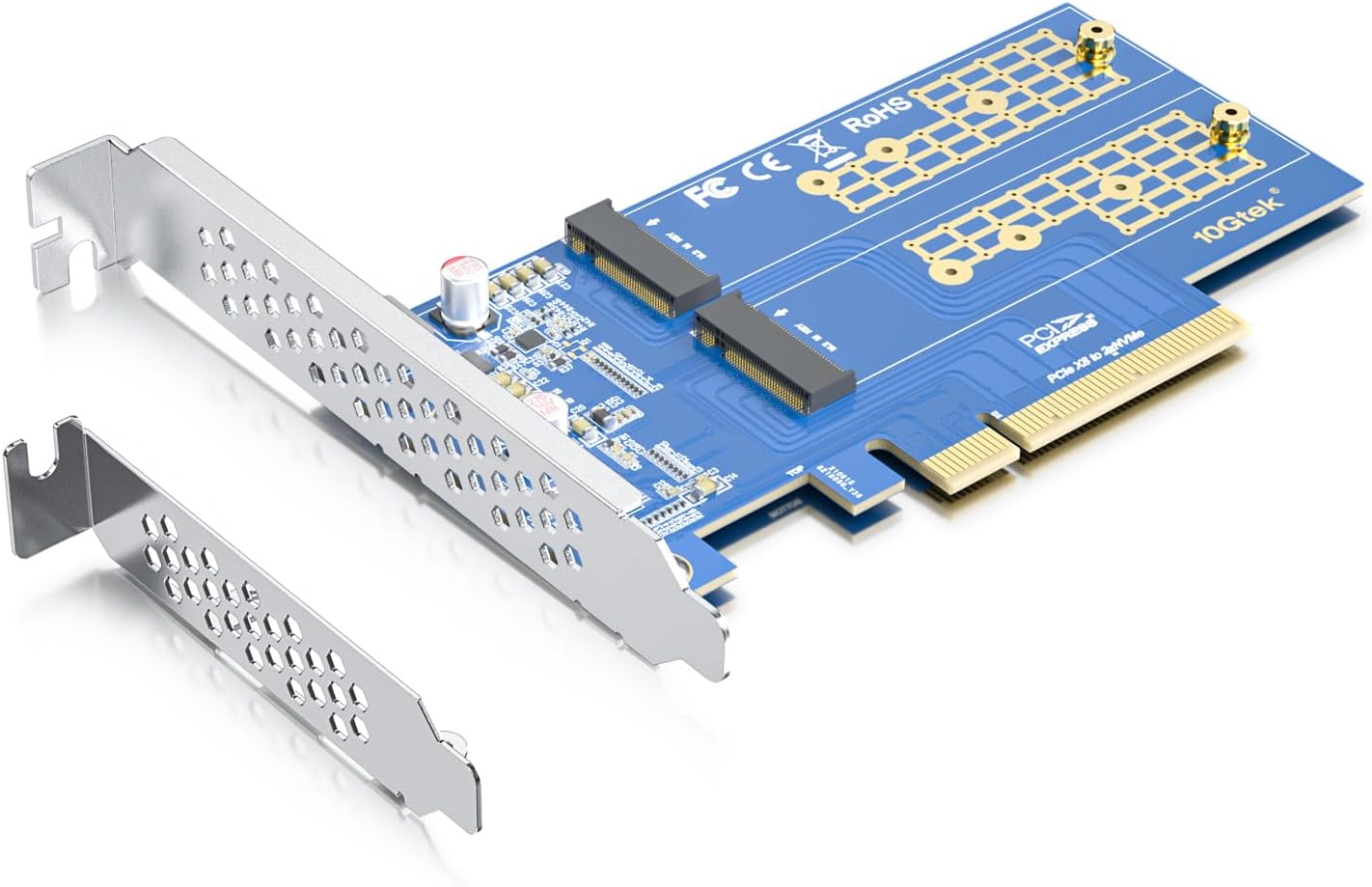

10Gtek 2-Port M.2 NVMe Adapter{:target="_blank"} | Dual drive interface slot device • Holds the two 256GB M.2 drives for apps/VMs |
 |

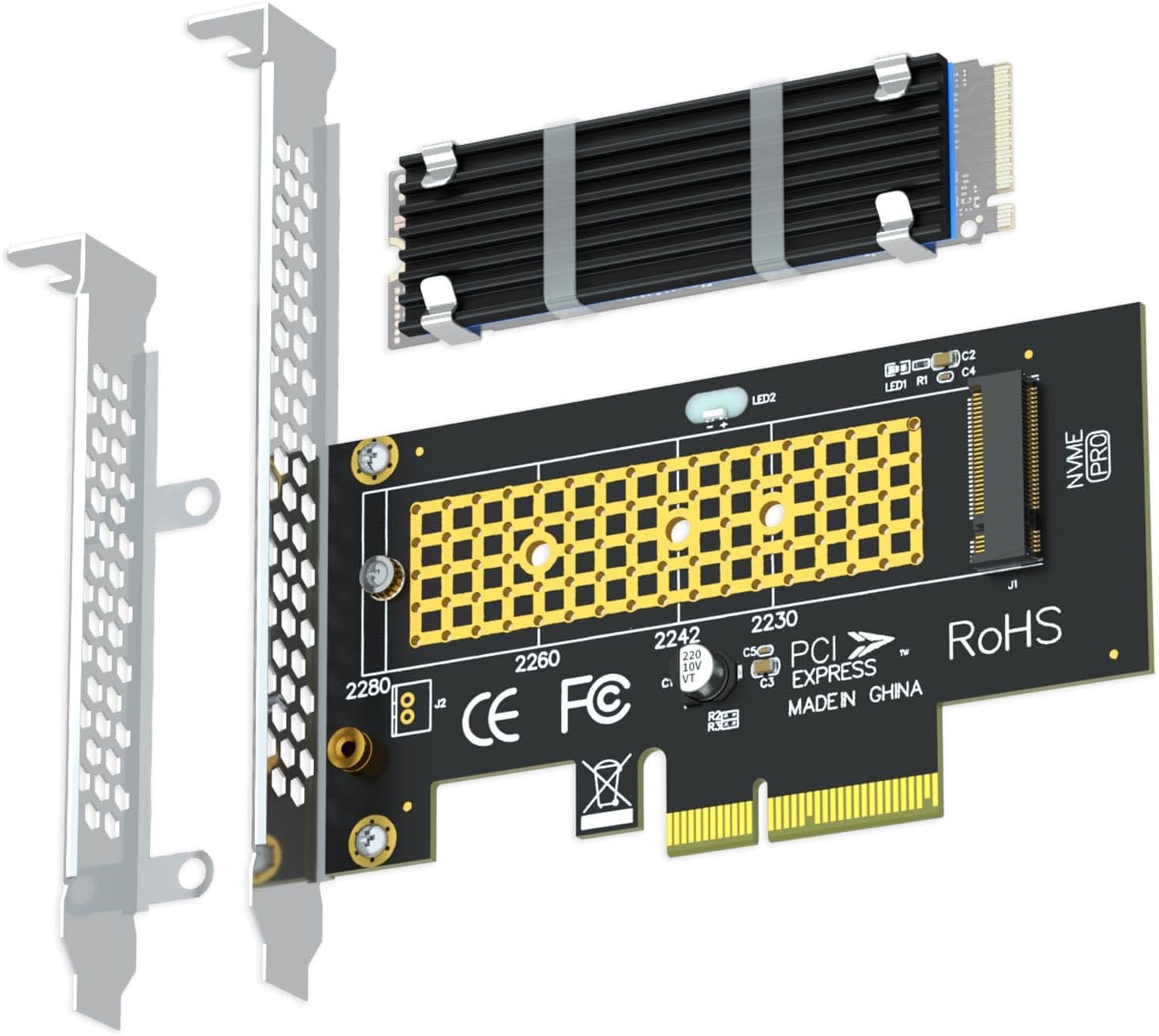

GLOTRENDS PA09-HS M.2 NVMe to PCIe 4.0 X4{:target="_blank"} | Expansion storage adapter with built-in heatsink • Holds the M.2 for download extraction |
 |
Mellanox ConnectX-3 10G Ethernet SFP+ PCI-E NIC{:target="_blank"} | High speed data backbone fiber interface network card • Connects to SFP in a Ubiquiti 24-port POE switch |
 |

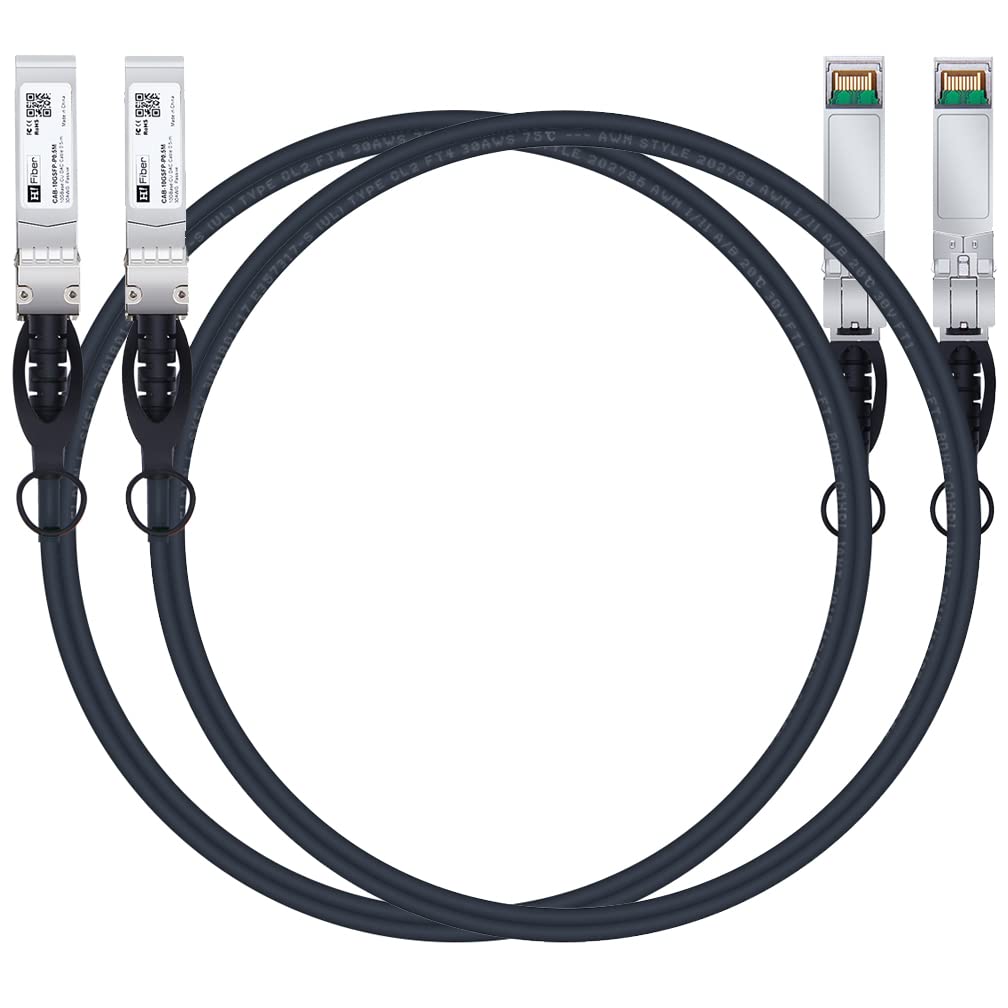

H!Fiber.com 2 Pack 10G SFP+ DAC Cable 2M{:target="_blank"} | Twinax passive network patch link assemblies • One for unRAID server and one for storage server |
 |

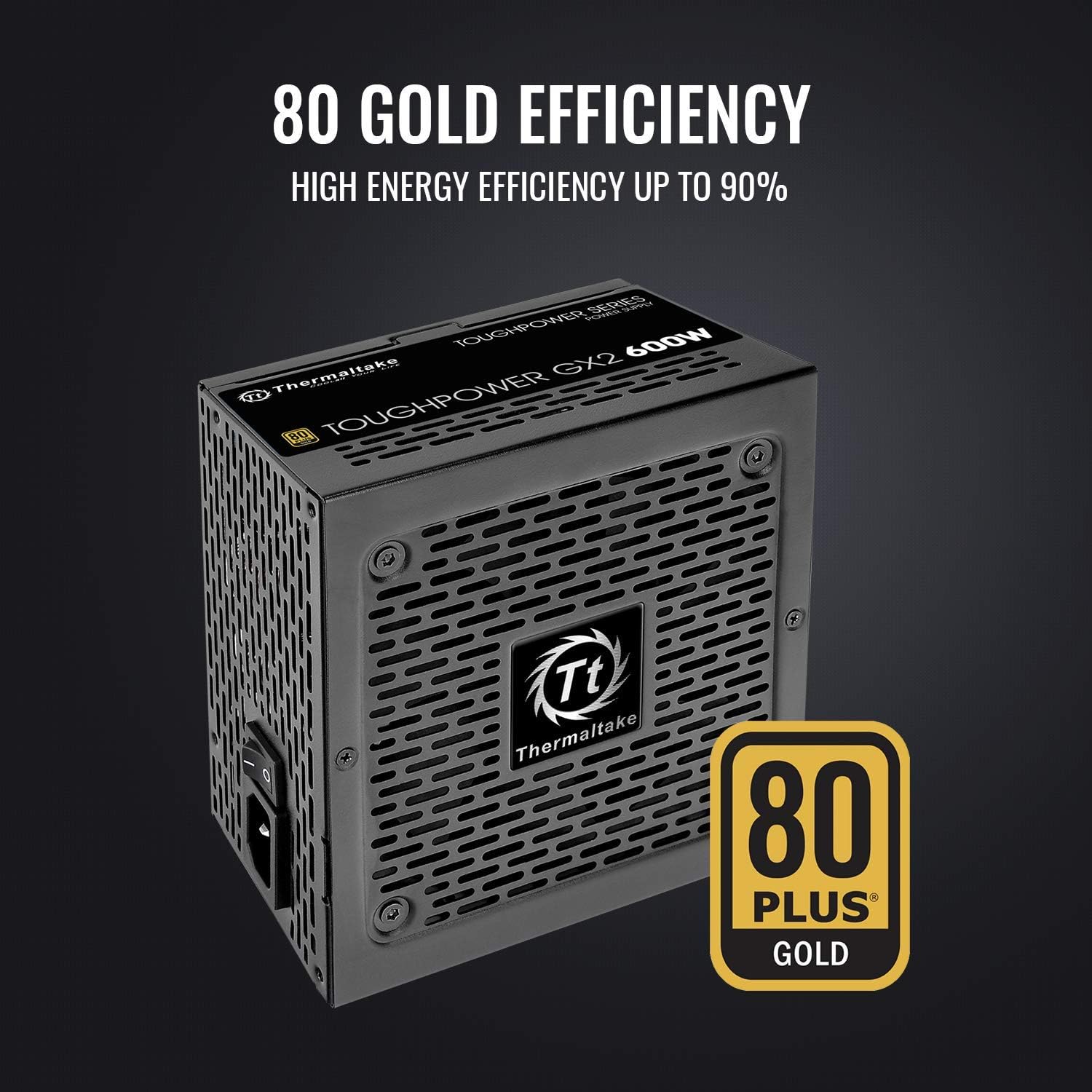

Thermaltake Toughpower GX2 600W ATX PSU{:target="_blank"} | 80+ Gold certified continuous power delivery unit |
