CyberKey

Touch an enrolled finger. A TOTP code is typed into the focused field over Bluetooth — no phone, no app, no copy-paste.

Built on the M5StickC Plus 2 (ESP32). Pairs with macOS, Windows, and Linux as a standard BLE HID keyboard.

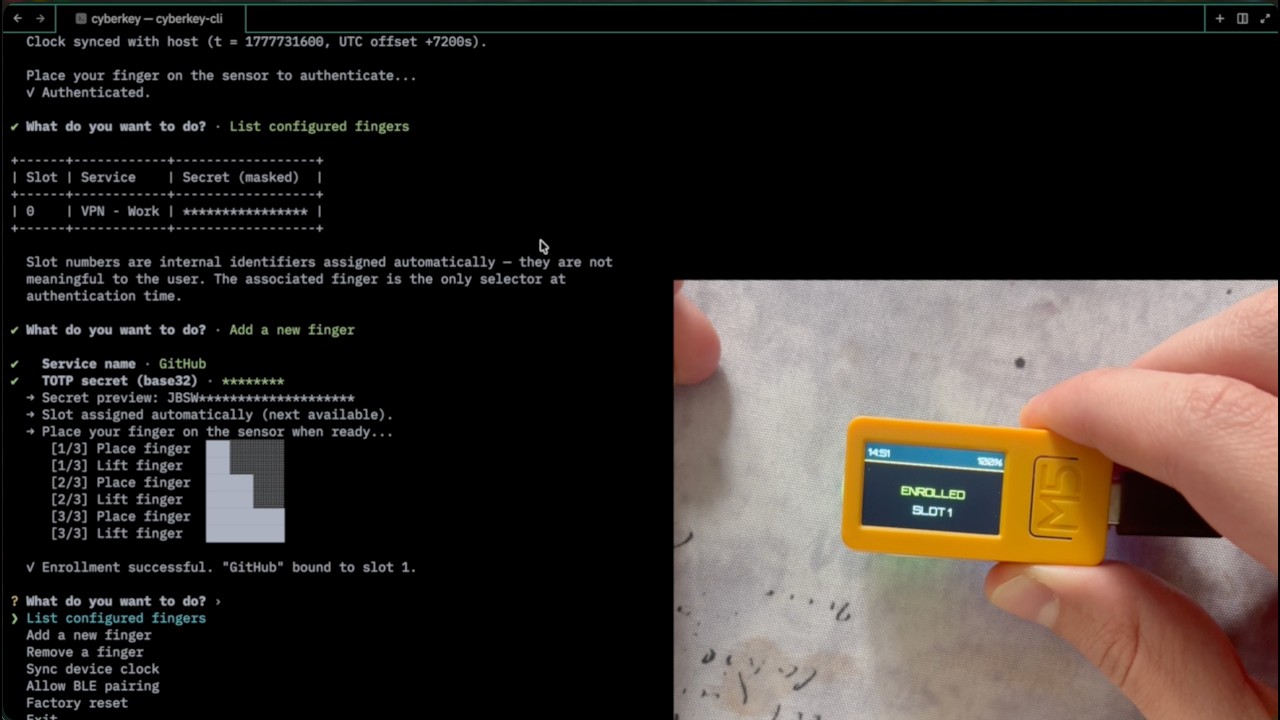

Demo video

Pictures

---

How it works

┌──────────────────────────────────────────────┐
│             M5StickC Plus 2                  │
│                                              │
│  Fingerprint sensor  ──→  match slot N       │
│  NVS (AES-256-XTS)   ──→  load secret[N]     │
│  RTC (BM8563)        ──→  current timestamp  │
│                           ↓                  │
│                        TOTP code             │
│                           ↓                  │
│  NimBLE HID keyboard ──→  broadcast          │
└──────────────────────────────────────────────┘
          │ BLE             │               │
          ▼                 ▼               ▼
    Host computer 1   Host computer 2   Host computer 3

One finger = one service. Place the enrolled finger, the device matches it, generates the 6-digit code, and types it via BLE. Wrong finger → red LED, nothing typed.

Configuration (enrollment, clock sync, bond management) happens over USB-C serial using the cyberkey-cli desktop tool.

---

User Interface & Shortcuts

During Normal Use

Action	Button	Effect
Wake Up	Any button	Turns on the screen and activates the sensor.
TOTP	Sensor	Place an enrolled finger — the service label and 6-digit code appear on the display, then the code is typed via BLE.
Pairing	Button B (short)	Toggle the BLE pairing window (displays the PIN).
Clear Bonds	Button A (1.5s)	Resets all Bluetooth pairings (hold again to confirm).
Power Off	Button C (1.5s)	Shuts down the device.

Recovery (at Boot)

Action	Button	Effect
Factory Reset	Button A (hold 2s, press again within 10s)	Erases all fingerprints and stored secrets.

---

Hardware

Part	Reference
M5StickC Plus 2	M5Stack SKU:K016-P2
Fingerprint sensor	M5Stack Unit Fingerprint2 SKU:U203

The sensor connects to the M5StickC Plus 2 Grove port (UART, no soldering).

---

Security model

BLE pairing uses LESC (ECDH P-256) + MITM passkey entry. A random 6-digit passkey is generated at boot and displayed on the LCD. The host must enter it to complete pairing — a rogue device nearby cannot pair silently.

Storage uses ESP-IDF encrypted NVS (AES-256-XTS). The encryption key is generated at first boot and burned into the ESP32's eFuses (one-time programmable, cannot be read back). A stolen device with a dumped flash image yields only ciphertext.

Authentication gates the USB CLI behind fingerprint unlock. TOTP secrets are never sent over the wire in full.

Full details: docs/ble-security.md · docs/storage.md

---

Build & flash

Prerequisites

# Install the Xtensa toolchain (one-time)
cargo install espup
espup install
source ~/.espup/export-esp.sh

espflash is required to flash. It is pulled in automatically via cargo run.

Firmware

cd firmware
cargo build --release        # build only
cargo run --release          # build, flash, and open serial monitor

Desktop CLI

cargo build --release --package cyberkey-cli
# binary: target/release/cyberkey-cli

Connect the device over USB-C, then run cyberkey-cli. It auto-detects the serial port, syncs the clock, and shows an interactive menu.

---

Tests

The no_std crates are fully testable on a standard Rust toolchain (no hardware needed):

cargo test --exclude firmware

The firmware crate targets Xtensa ESP32 and requires the Espressif toolchain; it is excluded from the above. See docs/testing.md for the manual smoke test checklist.

---

Repository layout

Crate	Target	Description
crates/cyberkey-core	no_std	TOTP engine (RFC 6238), BCD helpers
crates/cyberkey-hid	no_std	ASCII → HID keycode table
crates/fingerprint2-rs	no_std	Fingerprint2 sensor UART driver
crates/cyberkey-cli	std	Desktop configuration tool
firmware	ESP32 only	Hardware integration, BLE, main loop

Architecture and design decisions: ARCHITECTURE.md

---

References & Inspirations

Cyberpunk 2077 is the primary aesthetic inspiration. CyberKey is a first attempt at making real the kind of cyberware gadgets from the game — a physical device that does something that still feels futuristic. This project was born from the desire to learn embedded systems by building something useful that doesn't exist yet.

Prior art & reference code

• AirHound — A Rust no_std + ESP32 project with the same architectural pattern: a portable detection library tested on a laptop, wired to hardware in a thin firmware crate. A reference for what a well-structured ESP32/Rust workspace looks like.

• M5Unified — M5Stack's official C++ hardware abstraction library. Used as the reference for GPIO maps, peripheral initialization order, and battery ADC calibration formula.

• M5Unit-Fingerprint2 — M5Stack's official Arduino driver for the Fingerprint2 sensor. Source of the UART packet protocol implemented from scratch in fingerprint2-rs.

• Export Google Authenticator OTP keys — Script for extracting base32 TOTP secrets from Google Authenticator. Useful for migrating existing 2FA accounts to CyberKey.

My own earlier experiments on this hardware

• m5stickc-plus-2-hello-world — First exploration of the M5StickC Plus 2 in Rust, comparing bare-metal esp-hal vs esp-idf-svc. Led to the choice of ESP-IDF for CyberKey (NVS, FreeRTOS, NimBLE).

• m5stickc-plus-2-bluetooth-macos — The prototype that cracked macOS BLE HID pairing. Documents why the pure-Rust trouble-host stack failed and why switching to NimBLE via esp32-nimble was the fix. Became the foundation for CyberKey's BLE layer.

---
